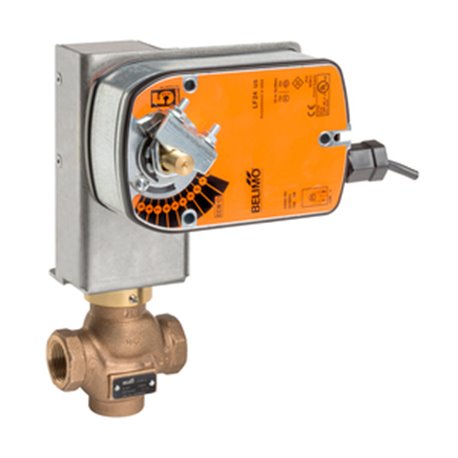

Belimo G220B-J+LF24 Globe Valve 0.75 2 Way 5.5 Cv Replacement MPN

Product Description

The Belimo G220B-J+LF24 is a globe valve designed for on/off control in HVAC systems. With a valve size of three-quarters of an inch, it supports 5.5 Cv for efficient flow regulation. This valve features a spring return actuator powered by twenty-four volts, allowing for fail-safe operation.

• Suitable for chilled or hot water and glycol mixtures.
• Direct mounting on damper shafts measuring between three-eighths and one-half inches in diameter.
• Includes mounting accessories for various installation needs.

Product Highlights

The G220B-J+LF24 ensures precise control over HVAC dampers, adapting to your installation requirements effectively.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G220B-J+LF24

Technical Specifications

• Valve Size: 0.75 inches [20]
• Valve Pattern: 2-way
• Working Pressure: ANSI Class 250
• Angle of Rotation: 90 degrees
• Safety Mechanism: Spring return actuator
• Electrical Connection: Cable
• Voltage: AC/DC 24V
• Protection Rating: IP54 NEMA2
