Product Description

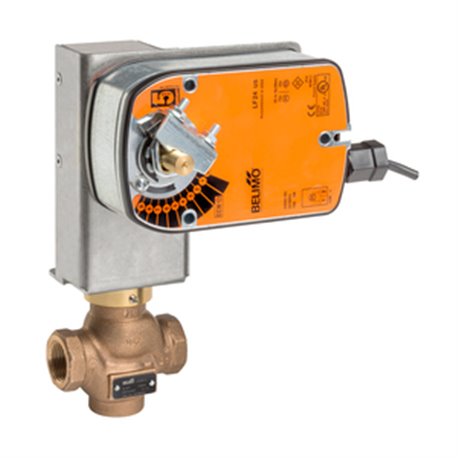

The Belimo G220B-J+LF120-S is a globe valve that operates as a two-way valve. It is designed for on/off applications with a spring return actuator. This valve is suitable for use with chilled or hot water and can handle a fluid mix of up to sixty percent glycol. It is rated for a Cv of five point five, making it an efficient choice for various flow control needs. The valve features a size of zero point seventy-five inches and utilizes an internal thread for connection. It is powered at one hundred twenty volts.
- Two-way operation for efficient flow control
- Ideal for chilled or hot water applications
- Spring return actuator included
Product Highlights
This valve is reliable for controlling water flow in HVAC systems and is built to endure demanding environments.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: G220B-J+LF120-S
Technical Specifications
-
Valve Size: 0.75 [20]
-
Angle of Rotation: 90 degrees
-
ANSI Class: 250
-
Controllable Flow Range: Stem up - open A b AB
-
Cv: 5.5
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol steam
-
Pattern: 2-way
-
Pressure Independent: NO
-
Trim: Bronze
-
Actuator Type: Spring return
-
Auxiliary Switches: 1 x SPDT
-
Degree of Protection: IP54 NEMA 2
-
Electrical Connection: Cable
-
Power Consumption (Holding): 3.5 W
-
Power Consumption (Running): 5.5 W
-
Running Time (Fail-safe): Less than 25 seconds
-
Running Time (Motor): 75 seconds / 90 degrees
-
Voltage AC/DC: AC 120 V
