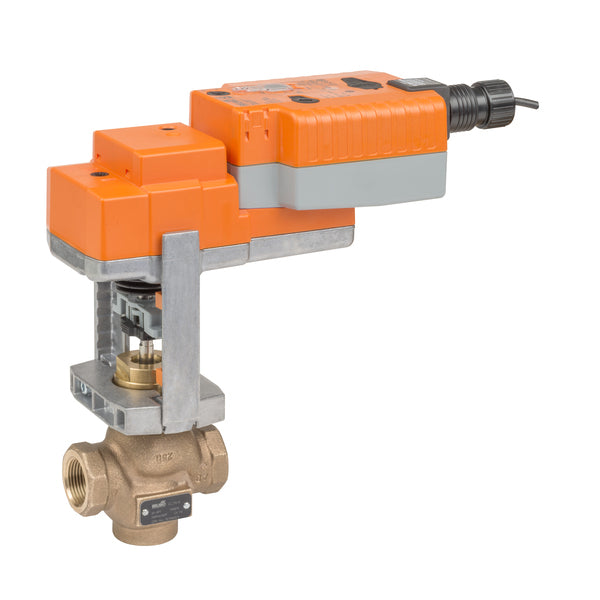

Belimo G215B-J+LVKB24-SR Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Belimo G215B-J+LVKB24-SR is a globe valve assembly designed for effective control of water and steam systems. This valve features a two-way operation and a size of one half inch. It operates with a direct coupled actuator and is suitable for modulating control in HVAC systems. With a bronze body and brass trim, the valve ensures durability and reliability in various applications.

• Direct coupled actuator provides efficient actuation.
• Four point four Cv rating for significant flow capacity.
• Compatible with hot and chilled water systems as well as low to high pressure steam control.

Product Highlights

This globe valve assembly provides a linear force of one hundred fifteen foot-pounds and includes an electronic fail-safe feature. It is ideal for applications requiring precise flow control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: G215B-J+LVKB24-SR

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled or hot water, up to 60% glycol, steam
• Electrical Connection: 3 ft. 18 GA plenum rated cable with 1/2 in. conduit connector protected NEMA 2
• Flow Characteristic: Modified equal percentage
• Running Time (Motor): 90 seconds
• Stroke: 0.75 inches
• Running Time (Fail-safe): Less than 35 seconds
• Power Consumption: 2.5 W Running, 1 W Holding
