Product Description

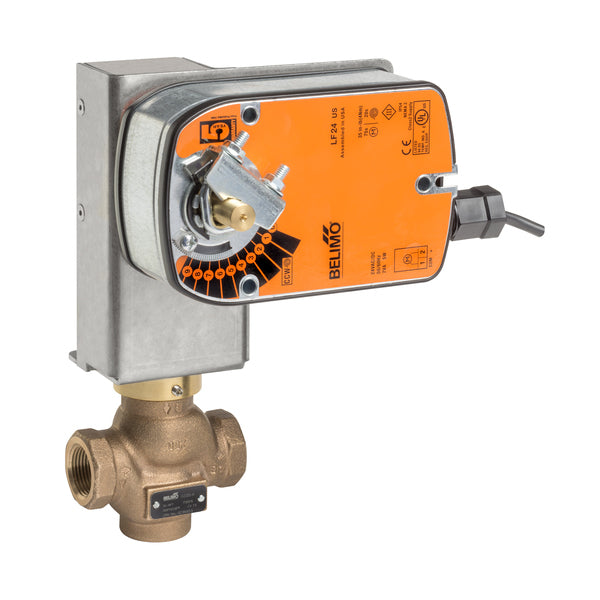

The Belimo G215B-J+LF24-MFT is a globe valve designed for fail-safe, modulating control of dampers in HVAC systems. It operates at a voltage of 24V and is suitable for both chilled and hot water applications. The actuator must be sized in accordance with the specifications provided by the damper manufacturer. A feedback signal indicates position, ensuring effective control.
- 2-way valve design for efficient flow control
- Integrated spring return actuator for reliable performance
- Compatible with various fluids including glycol steam
Product Highlights
This valve is essential for HVAC professionals looking for a reliable solution that ensures optimal airflow and system efficiency.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: G215B-J+LF24-MFT
Technical Specifications
-
Angle of Rotation: 90 degrees
-
ANSI Class: 250
-
Controllable Flow Range: Stem up - open A b AB
-
Cv: 4.4
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol steam
-
Pattern: 2-way
-
Pressure Independent: NO
-
Trim: Bronze
-
Valve Size: 0.5 inches
-
Actuator Type: Spring return
-
Degree of Protection: IP54 NEMA 2
-
Electrical Connection: Cable
-
Power Consumption (Holding): 1 W
-
Power Consumption (Running): 2.5 W
-
Running Time (Fail-safe): Less than 25 seconds
-
Running Time (Motor): 150 seconds / 90 degrees
-
Voltage AC/DC: AC/DC 24 V
