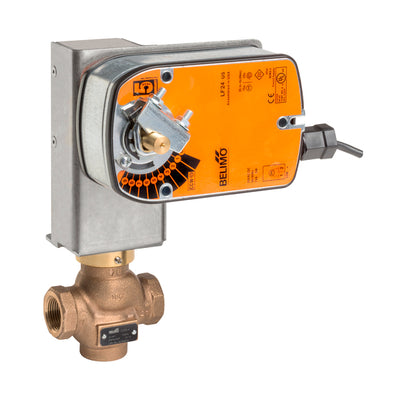

Belimo G215B-J+LF24 Globe Valve 0.5 2 Way 4.4 Cv w/ Spring Return 24V

Product Description

The Belimo G215B-J+LF24 is a globe valve designed for HVAC applications. This model features a half-inch size and operates as a two-way valve. It has a Cv rating of 4.4, making it suitable for various fluid control tasks.

• Spring return actuator type
• Compatible with chilled or hot water systems
• Operating voltage of 24V AC/DC

Product Highlights

The G215B-J+LF24 is a reliable choice for HVAC professionals needing effective flow control in their systems. Its robust design and specifications ensure long-term efficiency and performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: G215B-J+LF24

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 4.4
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Trim: Bronze
• Pattern: 2-way
• Pressure Independent: No
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Voltage AC/DC: 24 V
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
