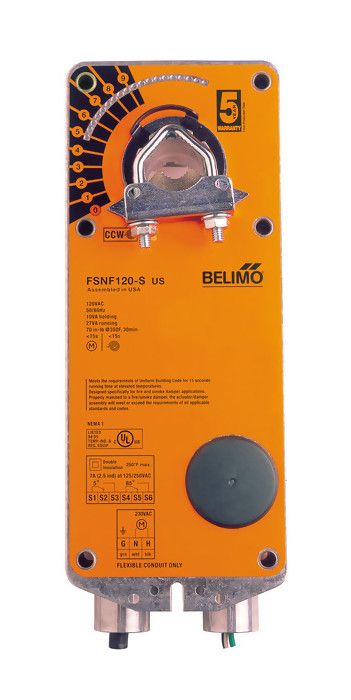

Belimo FSNF120-SUS Fire And Smoke Actuator, 70 in-lb

Product Description

The Belimo FSNF120-SUS fire and smoke actuator operates at a torque of seventy inch-pounds. This actuator is designed for reliable performance in both regular and emergency situations. It features a spring return system that maintains constant torque to the damper, ensuring proper functionality even when power is disrupted. This actuator is rated for temperatures up to three hundred fifty degrees Fahrenheit for thirty minutes, making it suitable for various HVAC applications.

• Spring return system for consistent torque.
• Operates effectively at high temperatures.
• Designed for UL555S dampers.

Product Highlights

The FSNF120-SUS actuator is ideal for smoke control systems, ensuring safety and compliance in building systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: FSNF120-SUS

Technical Specifications

• Housing: NEMA Type 1, IP40
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 23 VA Running, 9 VA Holding
• Operating Conditions: 32 F to 122 F (0 C to 50 C)
• Electrical Connection: 3 ft. 18 GA, 3 Color Coded Leads
