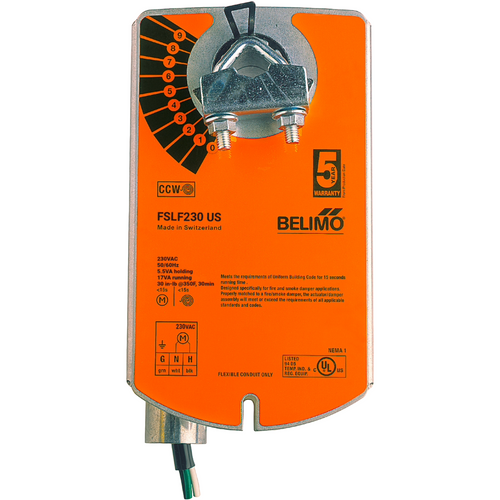

Belimo FSLF230 US Fail-Safe Fire & Smoke Actuator 30 in-lb

Product Description

The BELIMO FSLF230 US is a fail-safe fire and smoke actuator with 30 in-lb torque and a 230VAC power supply. It features an on/off control signal and comes with a 5-year warranty. This actuator is designed for dampers up to 4 sq. ft. and 2000 fpm at 350°F (177°C).

• For dampers up to 4 sq. ft. and 2000 fpm at 350°F (177°C)
• UL 60730 or UL 873 listed
• UL 555 & UL 555S listed with all major damper manufacturers

Product Highlights

The Belimo FSLF230 US actuator is ideal for fire and smoke damper applications, providing reliable performance and safety.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: FSLF230 US

Technical Specifications

• Voltage AC/DC: AC 230 V
• Power Consumption (Running) FS: 17 VA
• Power Consumption (Holding) FS: 5.5 VA (50 Hz 8 VA), End stop 27 VA
• Torque: 30 in-lb [3.5 Nm]
• Control Type: On/Off
• Direction Of Motion Motor: selectable by ccw/cw mounting
• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
• Angle of Rotation: 95
• Running Time (Motor): 15 s / 90 00b0
• Running Time (Fail-safe): <15 s
• Protection category: IP30
• Degree Of Protection NEMA: NEMA 1
• Enclosure Type: UL Enclosure Type 1
• Ambient Temperature: 32...122 00b0F [0...50 00b0C ]
• Actuator Type: Fire & Smoke Actuator
• Voltage: 230VAC
• Control Signal: On/Off
• Auxillary Switch: None
• Supply Va: 17 VA
• Power Supply: 207 - 253 VAC
• Housing Material: Zinc Coated Steel
• Humidity: 5 to 95% RH non-condensing
• Manual Override: No Manual Override
• Position Indication: visual indicator, 0 00b0 to 95 00b0 (0 00b0 is full spring return position)
• Shaft Diameter: 3/8 in to 1/2 in round, centers on 1/2 in
• Quality Standard: ISO 9001
• Power Supply Type: 230V
• Servicing: maintenance free
• Power Consumption Running: 50 Hz, 17 VA / 60 Hz, 17 VA
• Running Time: 15 seconds
• Storage Temperature Range: -40 to 176 00b0F (-40 to 80 00b0C)
• Actuator Series: FSLF
• Ambient Temperature Range: 32 to 122 00b0F (0 to 50 00b0C)
• Application Type: Fire & Smoke
• Agency Listings: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC.
  NYC Department of Buildings MEA 197-07-M
  California State Fire Marshal Listing 3210-1593:102
• Electrical Connection: 3 ft [1 m], 18 GA, 3 color coded leads
• Supply Voltage (Nominal): 240 VAC
