Product Description

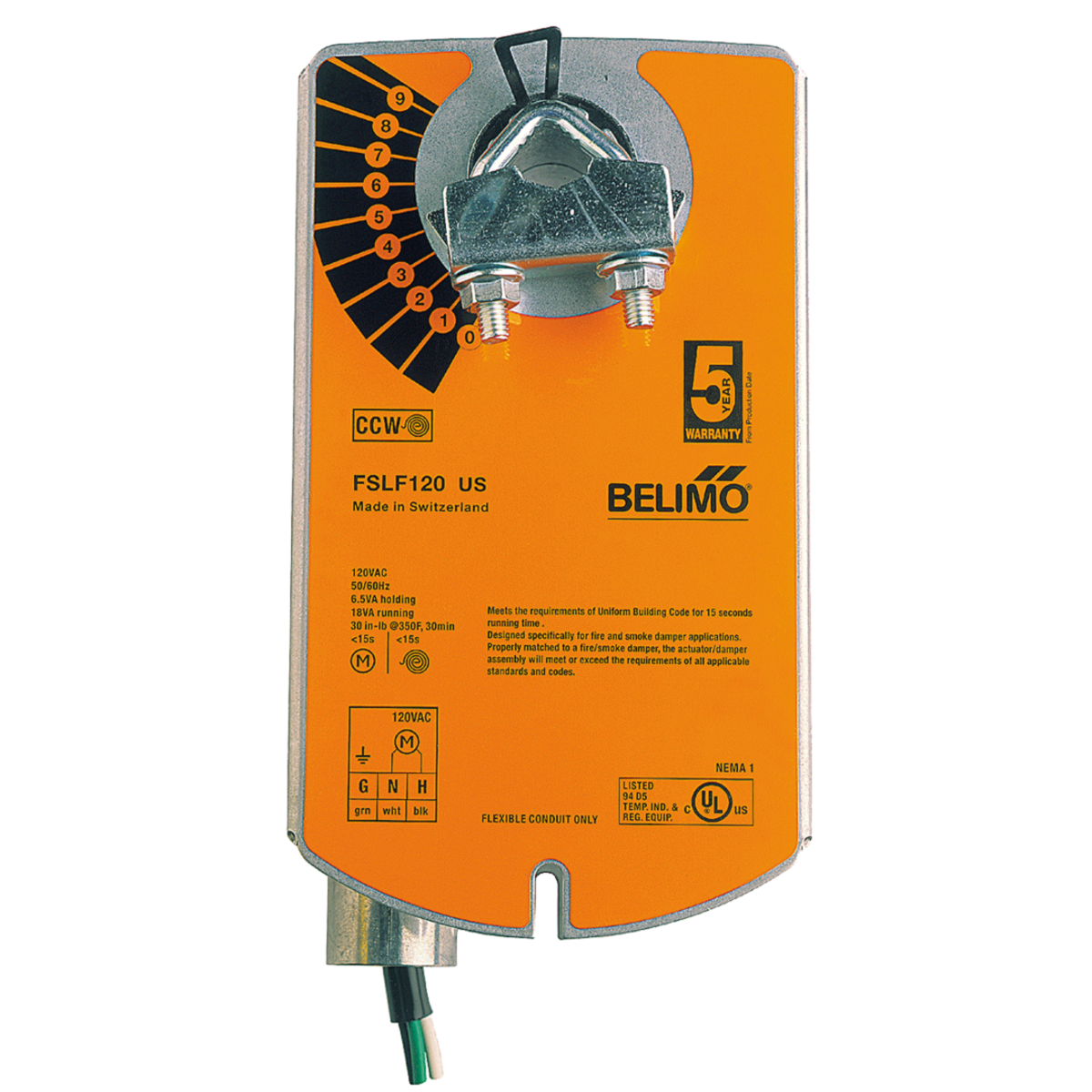

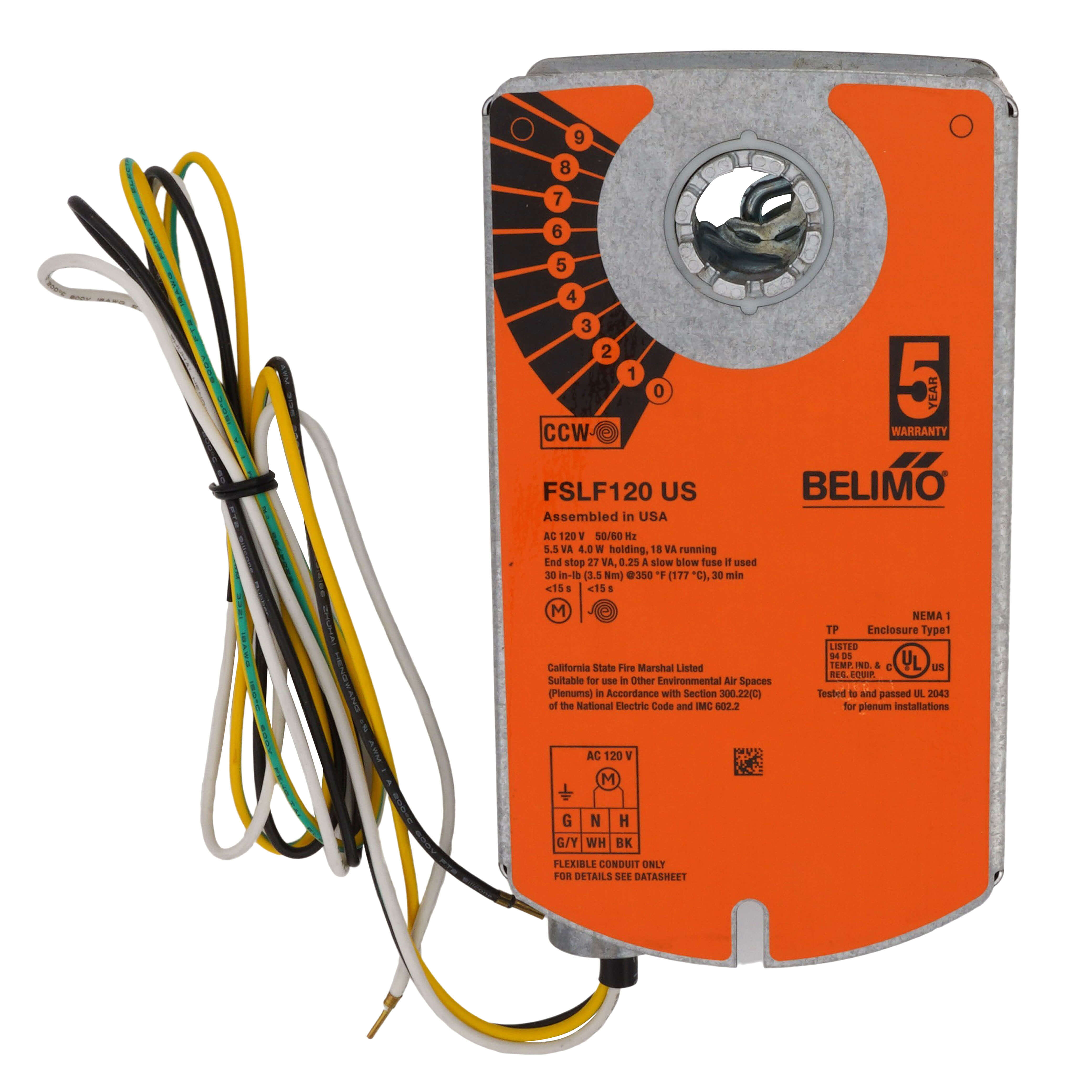

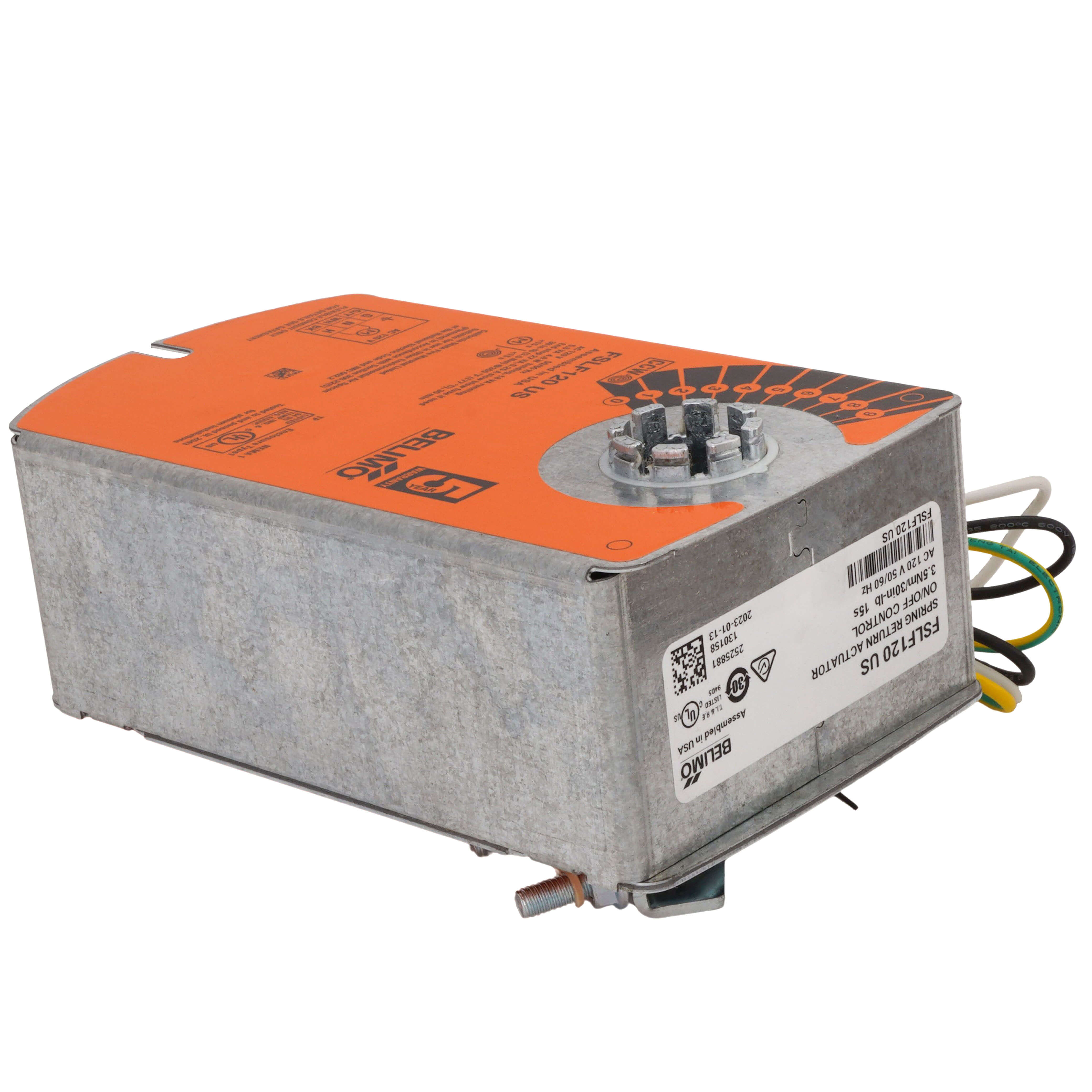

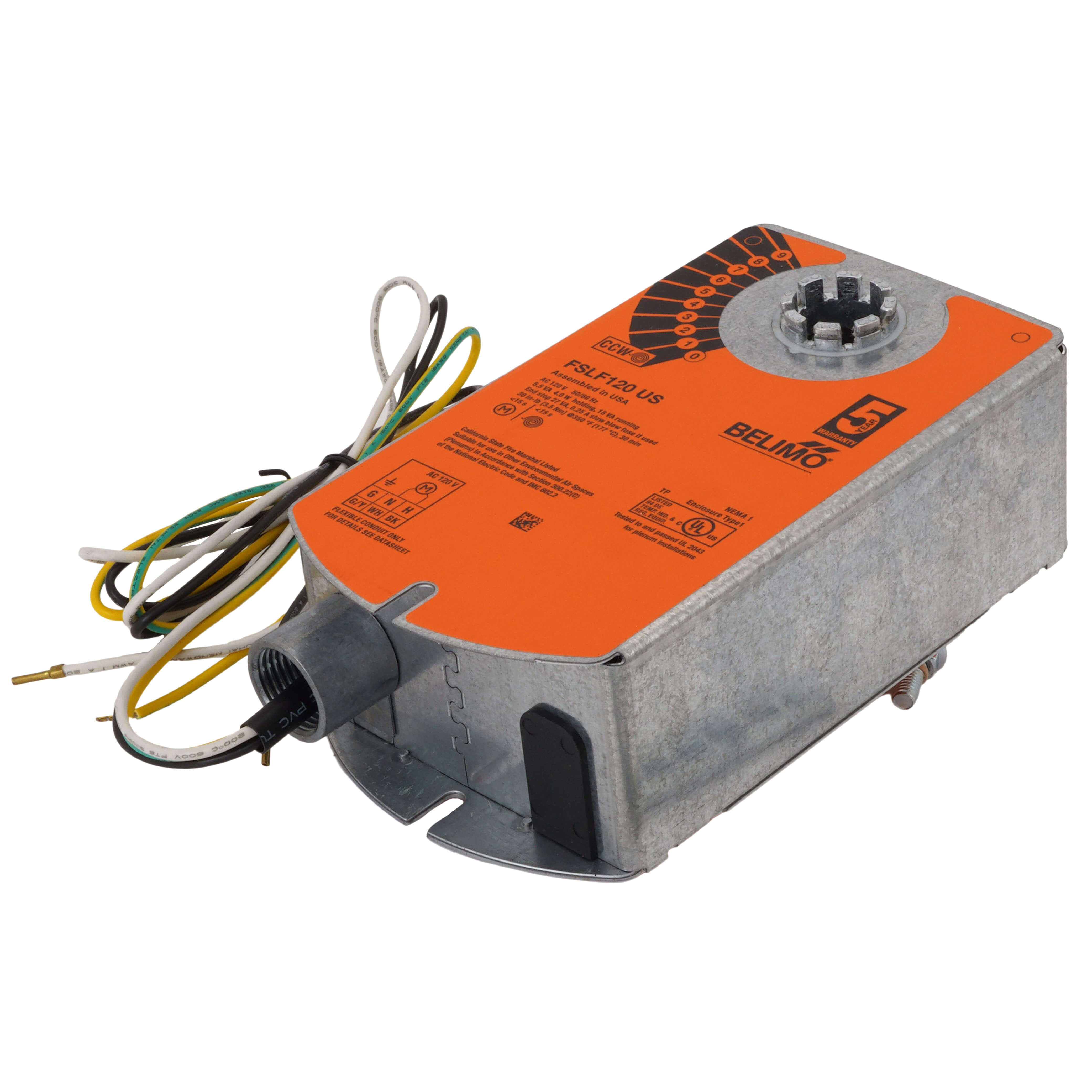

The Belimo FSLF120 is a fire and smoke damper actuator designed for operating smoke and combination fire and smoke dampers in ventilation and air conditioning systems. It features a 120V power supply and direct mounting capabilities. The actuator meets UL555 and UL555S requirements when tested as an assembly with the damper.
- Designed for smoke and combination fire and smoke dampers.
- Features a 120V power supply.
- Meets UL555 and UL555S standards.
Product Highlights
This Belimo actuator provides reliable operation of fire and smoke dampers in HVAC systems, ensuring safety and compliance with industry standards.
Product Information
Standard Information
-
Brand: BELIMO
-
Manufacturer Part Number: FSLF120
-
Country of Origin: United States
Technical Specifications
-
Voltage: 120 Volts
-
Specification Met: UL
-
Manufacturer: Belimo
-
Item Model Number: FSLF120
-
Brand: Belimo
-
Shaft Type: 3/8"to 1/2" Round
-
Item: Fire and Smoke Damper Actuator, 120VAC
-

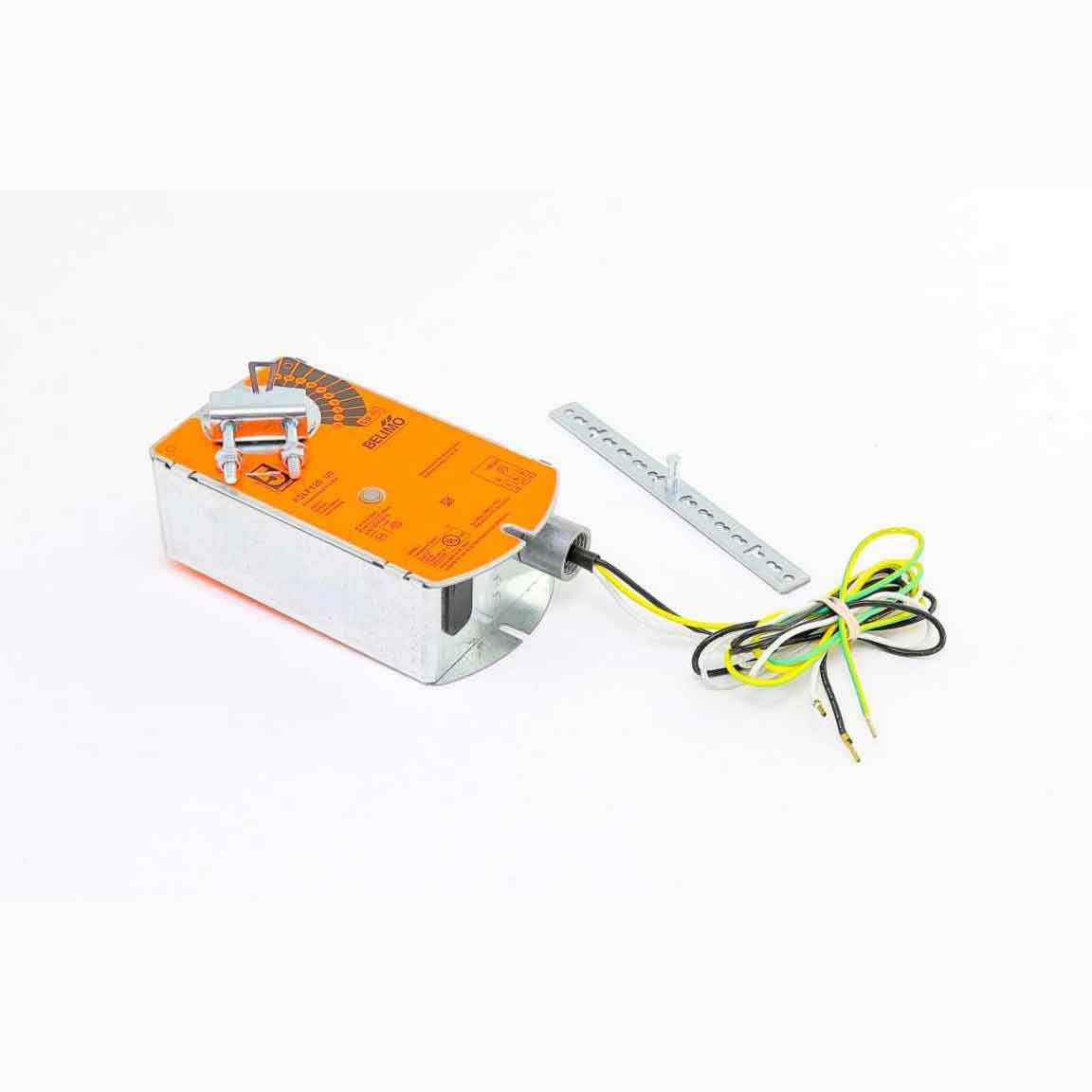

Includes: MOUNTING HARDWARE
-
Depth: 2-15/64"
-
Signal Type: On/Off
-
Mounting Type: Direct Mount
-
Ambient Temp. Range: 32 Degrees to 122 Degrees F
-
Width: 3-55/64"
-
Stroke Deg.: 0 to 95
-
Timing: 15 sec.
-
Torque: 30 in.-lb.
-
Spring Return: Yes
-
Height: 7-1/32"
-
Power Supply: 120 VAC
-
Running Time: <15 Seconds (motor), <15 Seconds (spring)
-
Fail Safe Mode: Spring Return
-
Auxiliary Switch: No Switch
-
Control Input Values: On/Off
-
VA Rating: 18
-
Motor Direction: CW or CCW
-
Supply Va: 18 VA
-
Housing Material: Zinc Coated Steel
-
Humidity: 5 to 95% RH non-condensing
-
Position Indication: visual indicator, 0° to 95° (0° is full spring return position)
-
Shaft Diameter: 3/8 in to 1/2 in round, centers on 1/2 in
-
Quality Standard: ISO 9001
-
Power Supply Type: 120V
-
Servicing: maintenance free
-
Power Consumption Running: 50 Hz, 20 VA / 60 Hz, 18 VA
-
Power Consumption Holding: 5.5 VA (50 Hz 8 VA), End stop 27 VA, 0.25 A slow blow fuse*
-
Storage Temperature Range: -40 to 176 °F (-40 to 80 °C)
-
Enclosure Rating: NEMA 1,IP30
-
Actuator Series: FSLF
-
Application Type: Fire & Smoke
-
Angle of Rotation: 95°
-
Agency Listings: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC.
NYC Department of Buildings MEA 197-07-M
California State Fire Marshal Listing 3210-1593:102
-
Electrical Connection: 3ft [1m], 18 GA appliance cable with 1/2 in conduit connector
-
Supply Voltage (Nominal): 120 VAC
-
Control Signal: Two Position
-
Temperature: 32 to 350DEG F
