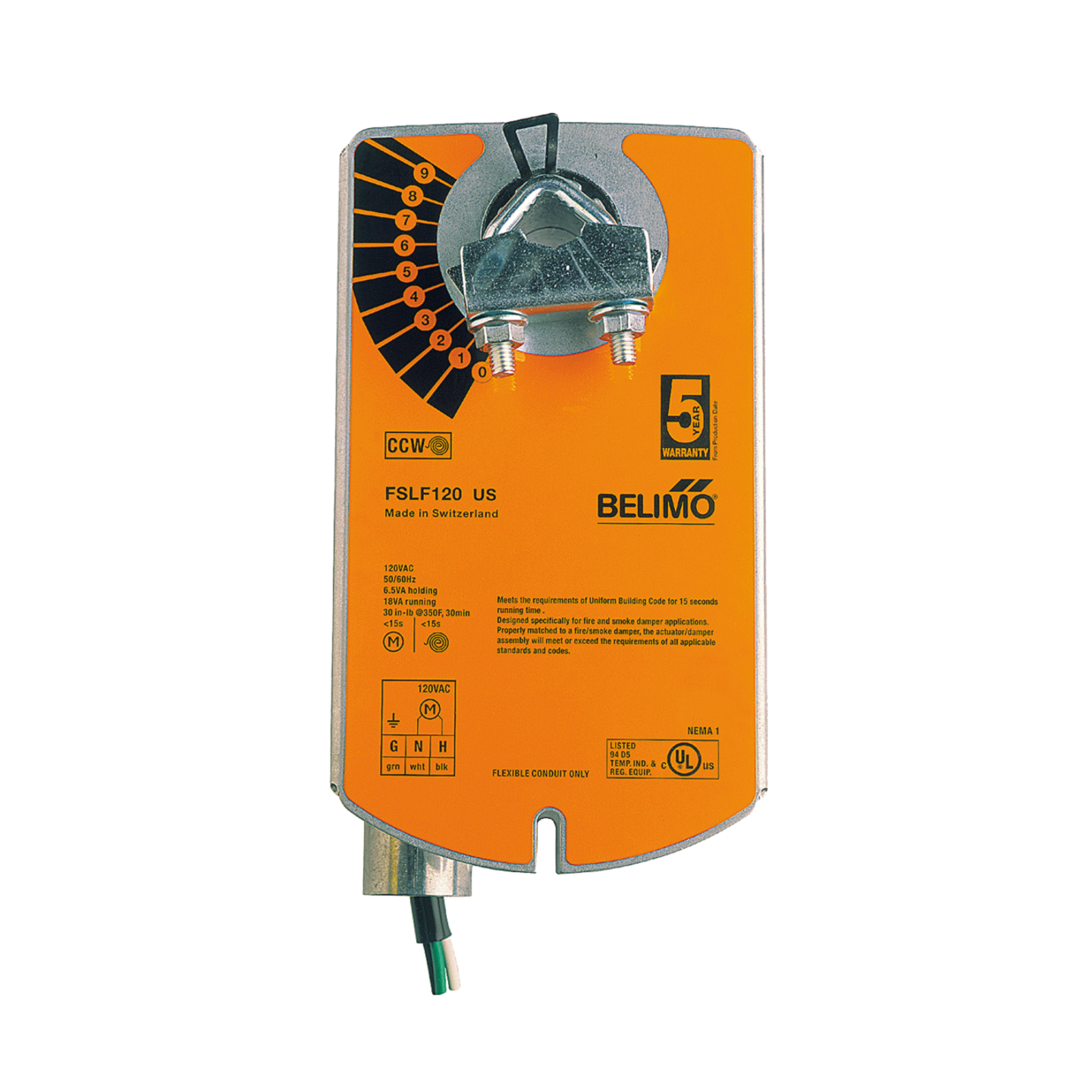

Belimo FSLF120-FCUS Fire And Smoke Actuator, 30 in-lb

Product Description

The Belimo FSLF120-FCUS is a fire and smoke actuator designed for use in ventilation and air-conditioning systems. This actuator is intended for the operation of smoke and combination fire and smoke dampers. The unit features a spring return mechanism, ensuring reliable performance in emergency situations.

• Operates smoke and combination fire and smoke dampers.
• Rated for 30 inch-pounds of torque.
• Designed to withstand temperatures up to 350 degrees Fahrenheit for half an hour.

Product Highlights

This actuator is essential for maintaining safety in HVAC systems by controlling dampers during fire conditions. It integrates seamlessly into various setups for effective smoke control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: FSLF120-FC US

Technical Specifications

• Power Consumption: 18 VA
• Operating Conditions: 32 F to 122 F (0 C to 50 C)
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Housing: NEMA 1, IP30 UL enclosure type 1
• Cycle Time: 15 seconds
