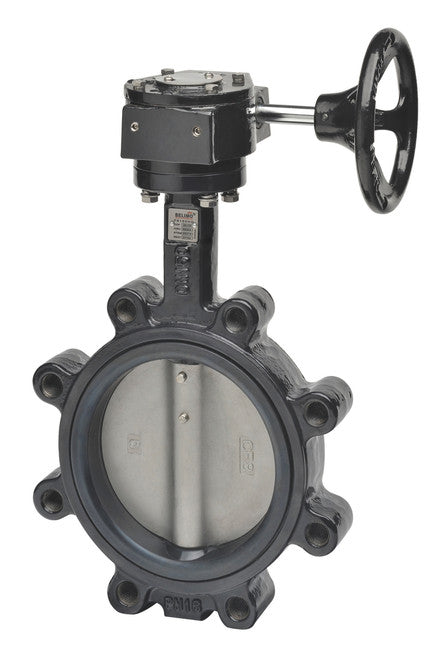

Belimo F6200L+ZD6N-S150 Butterfly Valve 8 inches Inch

Product Description

The Belimo F6200L+ZD6N-S150 butterfly valve assembly with ZD6N-S150 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. It is a 2-way valve with a Cv of 3136. The valve features a stainless steel disc, ductile iron body, and EPDM liner, ensuring 0% leakage up to 200 psi.

• 2-Way 8" Butterfly Valve
• Cv 3136
• Manual Gear Wheel Operator

Product Highlights

This Belimo butterfly valve is designed for reliable flow control in HVAC hydronic systems, offering durable construction and efficient operation.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: F6200L+ZD6N-S150

Technical Specifications

• ANSI Class: Consistent with 125
• Pattern: 2-way
• Cv: 3136
• Fluid: Chilled or hot water, up to 60% glycol
• Body Pressure Rating: ANSI Class Consistent with 125, 232 psi CWP
• End Fitting: Flange
• Valve Size: 8" [200]
• Control Type: Manual
• Valve Pattern: 2-Way
• CV Rating: 3136
• Actuator Type: Manual
• MPN: F6200L+ZD6N-S150
• Brand: BELIMO
