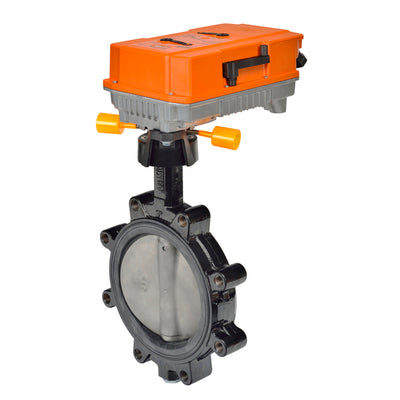

BELIMO F6150HD+PRXUP-3-T Butterfly Valve 6 Inch 1579 Cv 24-240V Non-Spring

Product Description

The Belimo F6150HD+PRXUP-3-T is a robust butterfly valve designed for HVAC systems, facilitating efficient flow control of chilled or hot water up to 60% glycol. This 6-inch, 2-way valve is characterized by its high Cv rating of 1579 and is powered by a 24-240V non-spring actuator.

• Non-fail safe actuator ensures reliability in operations.
• Equipped with IP66/67 NEMA 4X enclosure for enhanced environmental protection.
• Suitable for applications requiring precise flow control.

Product Highlights

This valve features a floating/3-point control type and a manual override via a 7 mm hex crank. Its auxiliary switches add flexibility to the system integration.

Product Information

Standard Information

• Brand: Belimo
• MPN: F6150HD+PRXUP-3-T

Technical Specifications

• ANSI Class: Consistent with 125
• Valve Size: 6 inches [150]
• Actuator Type: Non fail-safe
• Voltage AC/DC: AC 24 to 240 V / DC 24 to 125 V
• Pattern: 2-way
• Fluid: Chilled or hot water up to 60% glycol
• End Connection: Lug types
• End Fitting: Flange
• Manual Override: 7 mm hex crank supplied
