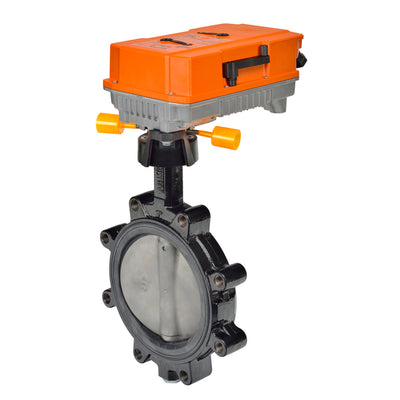

Belimo F6150HD+PRBUP-3-T Butterfly Valve 6 inches 2 Way 1579 Cv Non-Spring 24-240V On/Off

Product Description

The Belimo F6150HD+PRBUP-3-T butterfly valve is engineered for bi-directional high flow HVAC hydronic applications, ensuring 0% leakage. Perfect for ANSI flanged piping systems, it adheres to API 609 & MSS-SP-67 standards, and it's ready for installation right out of the box.

• Provides quarter-turn rotational action for regulating fluid flow.
• Designed for extreme temperature and high-pressure environments.
• Equipped with a brushless DC motor and electronic fail-safe features.

Product Highlights

This two-way valve can handle basic ON/OFF to complex variable flow applications, ideal for use with water and steam in most industrial and commercial HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: F6150HD+PRBUP-3-T

Technical Specifications

• Valve Type: Two-way butterfly
• Size: 6 inches
• Flow Coefficient (Cv): 1579
• Operating Power: 24 to 240V AC/DC
• Pressure Rating: 200 PSID
• Connection Type: Lug types
• Body Material: Stainless steel
• Enclosure Rating: NEMA 4, IP66/67
