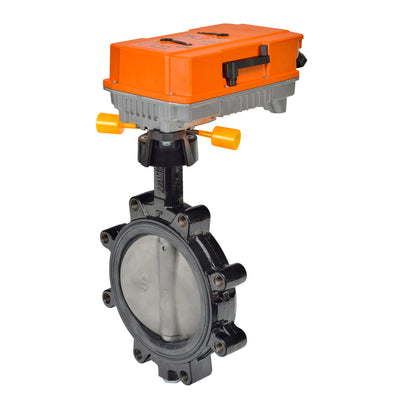

Belimo F6125HD+PRBUP-3-T | Butterfly Valve | 5 | 2 Way | 1022 Cv | w/Non-Spring | 24 -240V | On/Off

Product Description

The Belimo F6125HD+PRBUP-3-T is a butterfly valve designed for efficient flow control in HVAC systems. It operates on a power range of twenty-four to two hundred forty volts and features a two-way design with a Cv rating of one thousand twenty-two.

• Maximum angle of rotation is ninety degrees.
• Compatible with chilled or hot water up to sixty percent glycol.
• Non-fail-safe actuator type for reliable operation.

Product Highlights

This valve is ideal for applications needing precise flow control. It suits various plumbing and HVAC setups.

Product Information

Standard Information

• Brand: Belimo
• Part Number: F6125HD+PRBUP-3-T

Technical Specifications

• Valve Size: 5 [125]
• Pattern: 2-way
• Cv: 1022
• End Connection: Lug types
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol
• Control Type: Floating/3-point
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
• Power Consumption (Holding): 6 W
• Power Consumption (Running): 20 W
• Manual Override: 7 mm hex crank supplied
• Degree of Protection: IP66/67 NEMA 4X UL enclosure type 4X
• Running Time (Motor): 35 s / 90 degrees
• Auxiliary Switches: 2 x SPDT
• Pressure Independent: NO
• Angle of Rotation: 90
• Controllable Flow Range: 90 degrees rotation
• Electrical Connection: terminals
