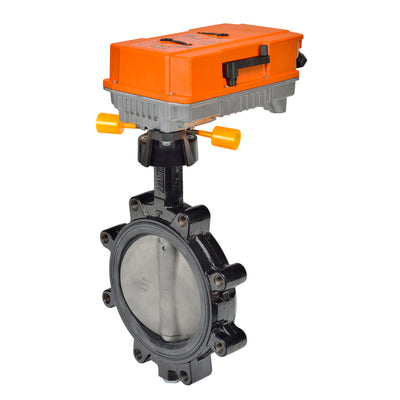

Belimo F6100HD+PRBUP-3-T Butterfly Valve 600 Cv 4 2 Way Non-Spring 24 -240V

Product Description

The Belimo F6100HD+PRBUP-3-T is a butterfly valve designed for ANSI flanged piping systems. It is suitable for bi-directional high flow HVAC hydronic applications with zero leakage. This valve is often used in applications such as cooling tower bypass systems, primary flow changeover systems, and control for large air handler coils.

• High flow capability with 600 Cv
• Temperature range for chilled or hot water with up to sixty percent glycol
• Non-spring actuator design for reliable operation

Product Highlights

This product offers controlled flow and reliability in demanding HVAC settings.

Product Information

Standard Information

• Brand: Belimo
• MPN: F6100HD+PRBUP-3-T

Technical Specifications

• Valve Size: 4 [100]
• Cv: 600
• Angle of Rotation: 90 degrees
• End Connection: Lug types
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol
• Control Type: Floating/3-point
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
