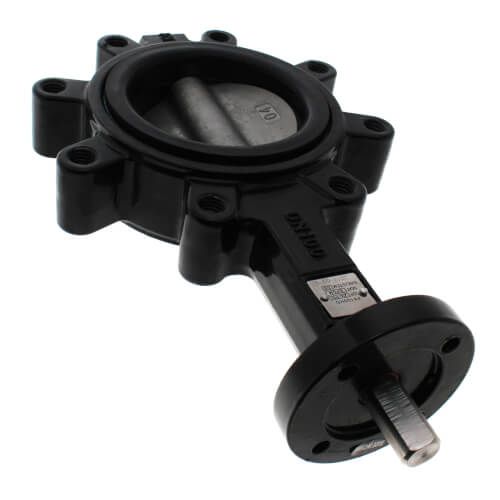

Belimo F6100HD 4 Inch 2-Way Stainless Steel Lug Style Butterfly Valve

Product Description

The Belimo F6100HD is a durable 4-inch 2-way butterfly valve ideal for HVAC applications requiring reliable flow control. Constructed with a stainless steel disc and cast iron body, this valve is designed to handle demanding conditions.

• Stainless steel disc ensures durability and corrosion resistance.
• Direct-coupled actuator for precise control.
• Low-leakage design enhances system efficiency.

Product Highlights

This valve is perfect for systems such as VAV boxes, fan coil units, and rooftop units, thanks to its wide pressure range up to 150 psi. The field-reversible actuator simplifies installation and maintenance.

Product Information

Standard Information

• Brand: Belimo
• MPN: F6100HD

Technical Specifications

• Diameter: 4 inches
• Material: Stainless steel disc, Cast iron body
• Pressure Range: Up to 150 psi
• Connection Type: Flanged x Flanged
• Temperature Range: -22°F to 250°F
• Flow Capacity (Cv): 600
• Close Off Pressure: 200 psi
