Belimo EXT-RT-SS10K3 Stainless Steel Room Sensor Passive

Product Description

The BELIMO EXT-RT-SS10K3 is a passive stainless steel room sensor designed for accurate temperature measurement. It features an NTC10k3 (Precon) output signal and operates within a measuring range of -4 to 140°F [-20 to 60°C]. This sensor is built with a durable stainless steel enclosure, offering IP30 NEMA 1 degree of protection. It is suitable for various room applications requiring precise temperature monitoring.

• Stainless steel construction
• Passive temperature sensing
• NTC10k3 (Precon) output signal

Product Highlights

Durable stainless steel room sensor for passive temperature measurement with NTC10k3 output.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: EXT-RT-SS10K3
• Country of Origin: Canada

Technical Specifications

• Degree of Protection: IP30 NEMA 1
• Electrical Connection: Terminals
• Measured Values: Temperature
• Measuring Range Temperature: -4 to 140°F [-20 to 60°C]
• Output Signal: NTC10k3 (Precon)
• Product Type: Sensor
• Sensor Type: Temperature
• Unit Type: Room Sensor
• Function: Passive Temperature Measurement
• Material: Stainless Steel
• Sensor Element: 10,000 Ohm Type III NTC thermistor (Precon), ±0.2°C
• Accuracy: ±0.2°C @ 25°C [±0.36°F @ 77°F]

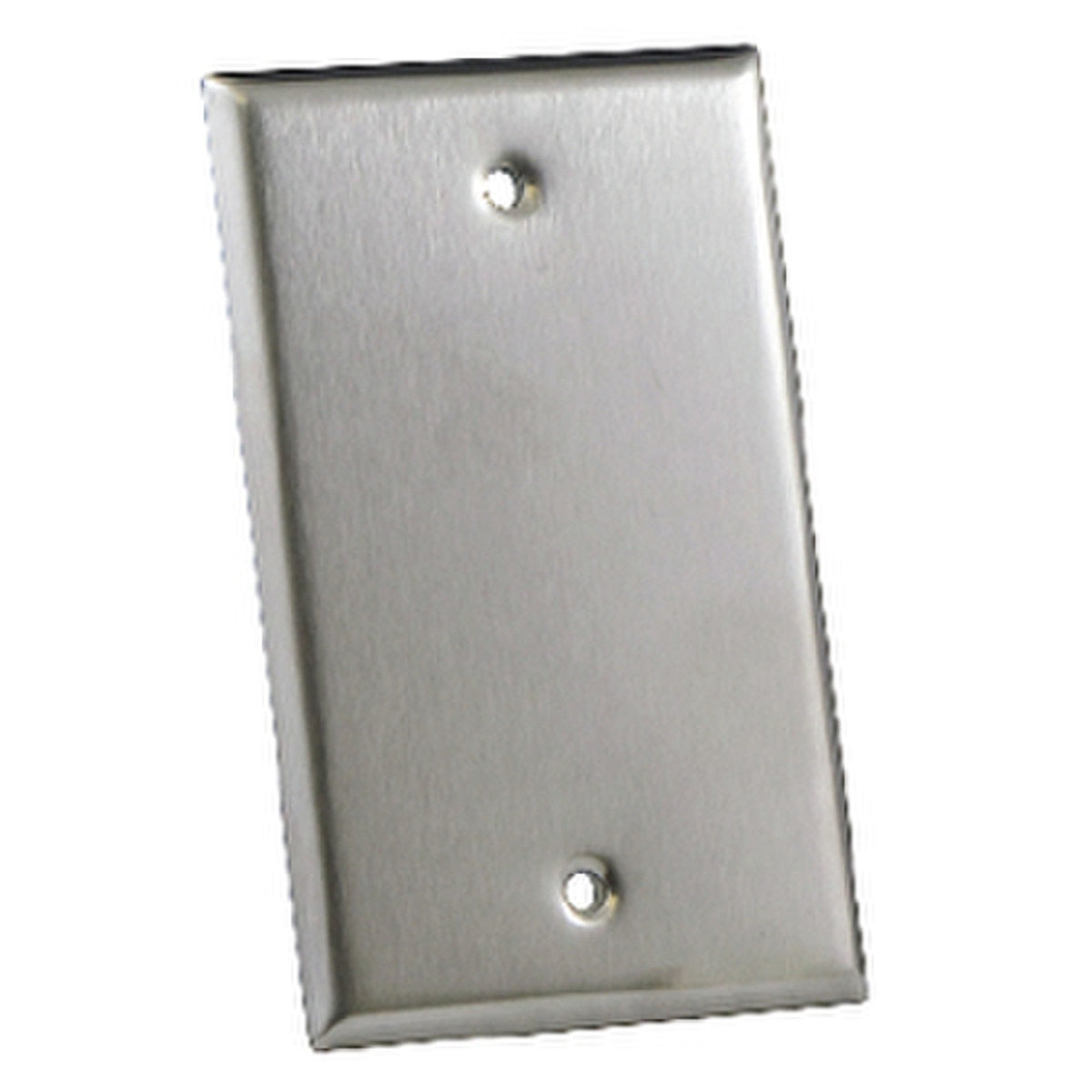

• Form Factor: Stainless Wall Plate
• Termination: 2-wire
• Mounting: Single-gang electrical box or flat-wall flush mount
• Supported Protocols: None
• Humidity Element: None
• CO2 Element: None
• Override: No Override
• Display: No Display
