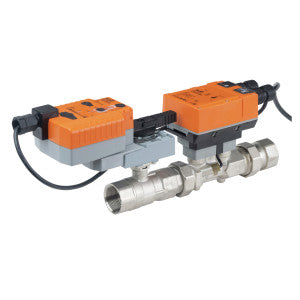

Belimo EP200H+ARX-E Configurable Electr. 2-Way PI-CCV EPIV AC/DC24V BACnet MS/TP Modbus RTU MP-Bus DN2 inches[50] GPM100

Product Description

The BELIMO EP200H+ARX-E is a configurable electronic pressure independent valve (EPIV) designed for AC/DC24V systems. It supports BACnet MS/TP, Modbus RTU, and MP-Bus communication protocols. This 2-way valve features an internal thread and a flow rate of 100 GPM. It utilizes ultrasonic sensor technology with glycol and temperature compensation.

• Maintains constant flow regardless of pressure variations.
• Maximizes chiller differential pressure.
• Simplified valve sizing and selection.

Product Highlights

Configurable electronic pressure independent valve with multiple communication protocols and ultrasonic sensor technology.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: EP200H+ARX-E

Technical Specifications

• Item Number: EP200H+ARX-E
• Brand: Belimo
• Type: EPIV
• Actuator Type: Electric
• Control Type: BACnet MS/TP Modbus RTU MP-Bus DC2...10V DC0.5...10V Hybrid (communicative / analog)
• Degree of Protection: IP54, NEMA2, ULEnclosureType2
• Electrical Connection: cable
• Manual Override: External push button
• Power Consumption (Holding): 1.4 W
• Power Consumption (Running): 4.5 W
• Running Time (Fail-safe): <35 s
• Running Time (Motor): 90s
• Voltage AC/DC: AC/DC24V
• Angle of Rotation: 90
• End Fitting: Internal thread
• Flow: 100
• Fluid: Chilled or hot water, up to 60% glycol max (open loop/steam not allowed)
• Pattern: 2-way
• PI-Technology: Electronic
• Pressure Independent: YES
• Sensor Technology: Ultrasonic with glycol and temperature compensation
• Trim: Stainless steel
• Valve Size: 2" [50]
• Voltage: 24vac, 24vdc
• Pipe Size: 2 in
• ANSI Class: 125
• Spring Return: Non-Spring Return
• Control Signal: Modulating
• Valve Part Number: P2200SU-1000
• Actuator Part Number: ARX24-EP2
• Torque: 180 in-lb
• Connection: Threaded
• Fail-Safe: Non Fail-Safe
• Supply Voltage (Nominal): 24 VAC,24 VDC
• Trim Material: Stainless Steel
• GPM: 100
