Belimo EP200H+AKRX-E Configurable Electr. 2-Way PI-CCV EPIV Fail-Safe 2 inches[50]

Product Description

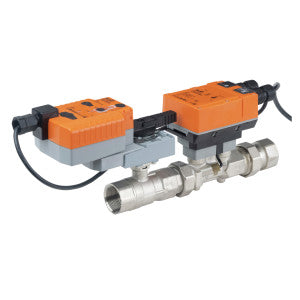

The BELIMO EP200H+AKRX-E is a configurable electronic pressure independent valve (EPIV) that incorporates a flow meter and a 2-way control valve. The actuator modulates the control valve to maintain flow, regardless of system pressure variations. It provides feedback as a 0-10 VDC or 2-10 VDC signal to the building management system.

• Provides constant flow regardless of pressure variations in the system.
• Maximizes chiller differential pressure.
• Simplified valve sizing and selection, no Cv calculations required.

Product Highlights

The Belimo EP200H+AKRX-E ensures precise flow control and energy efficiency in HVAC systems with its pressure independent design and electronic control capabilities.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: EP200H+AKRX-E

Technical Specifications

• Item Number: EP200H+AKRX-E
• Brand: Belimo
• Actuator Type: Electrical fail-safe
• Control Type: BACnet MS/TP Modbus RTU MP-Bus DC2...10V DC0.5...10V Hybrid (communicative / analog)
• Degree of Protection: IP54, NEMA2, ULEnclosureType2
• Electrical Connection: cable
• Manual Override: External push button
• Power Consumption (Holding): 5 W
• Power Consumption (Running): 6 W
• Running Time (Fail-safe): <35 s
• Running Time (Motor): 90s
• Voltage AC/DC: AC/DC24V
• Angle of Rotation: 90
• End Fitting: Internal thread
• Flow: 100
• Fluid: Chilled or hot water, up to 60% glycol max (open loop/steam not allowed)
• Pattern: 2-way
• PI-Technology: Electronic
• Pressure Independent: YES
• Sensor Technology: Ultrasonic with glycol and temperature compensation
• Trim: Stainless steel
• Valve Size: 2" [50]
• Torque: 180 in-lb
• Type: Assembly
• Connection: Threaded
• Fail-Safe: Electrical Fail-Safe
• Supply Voltage (Nominal): 24 VAC,24 VDC
• GPM: 100
• Control Signal: Analog,Communicating
• Flow rate adjustable: 25...100% of V'nom
• Fluid temperature: 14...250 °F [-10...120 °C]
• Differential pressure: Δp 8...50 psi
• Body Pressure Rating: 360 psi
• Leakage rate {Tools}: 0% leakage
• Power Consumption For Wire Sizing: 12 VA
• Connection Supply Control: Cable 3 ft. [1 m], 6 x 0.75 mm²
• Degree Of Protection NEMA: NEMA 4
• Enclosure Type: UL Enclosure Type 4
