Belimo EP100+LRX-E Pressure Independent Valve 1 in 18.2 Gpm

Product Description

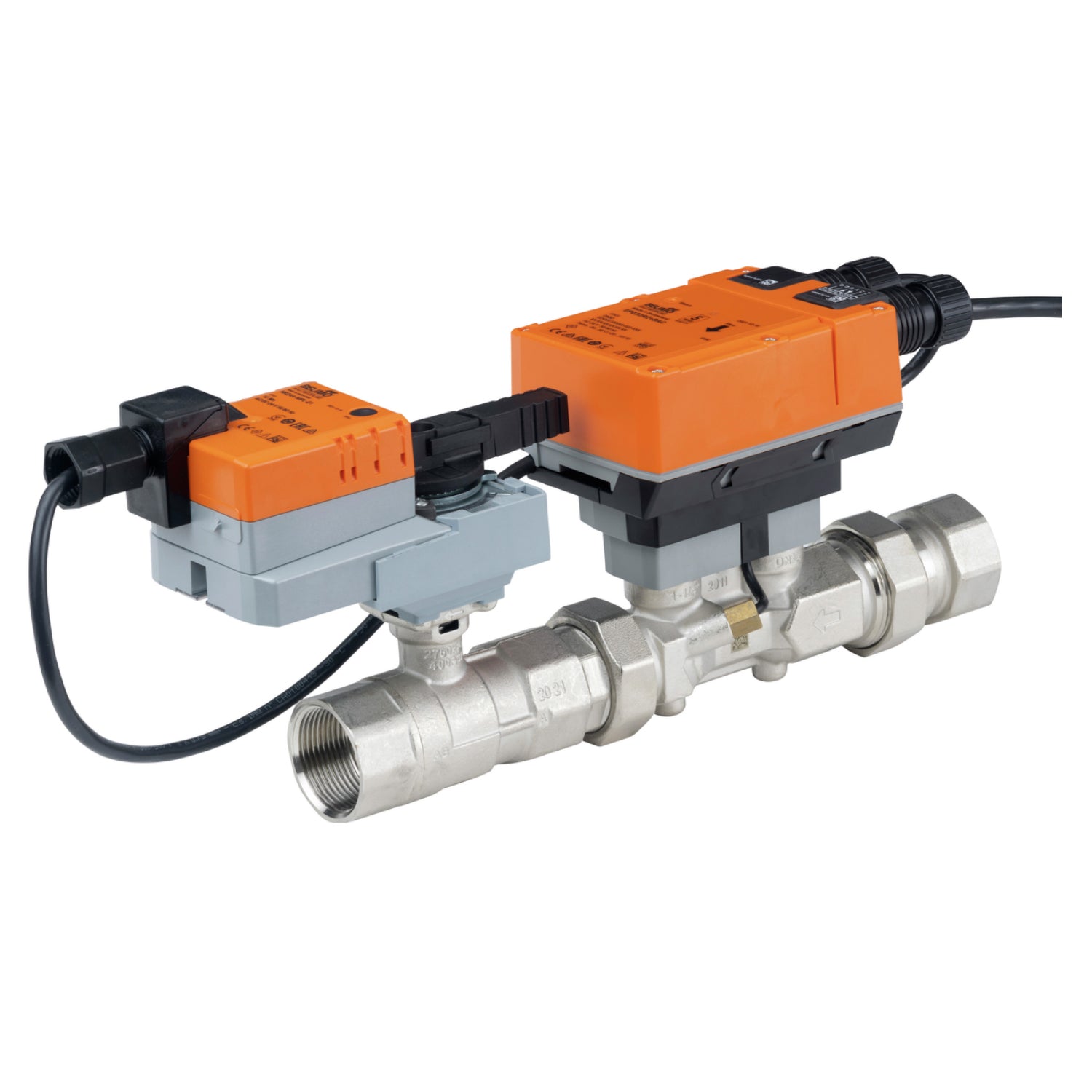

The BELIMO EP100+LRX-E is a pressure independent control valve (PICV) assembly combining a 2-way, 1-inch valve body with an electric rotary actuator for hydronic system flow control. The valve delivers equal percentage flow characteristics at a rated 18.2 GPM with a close-off pressure rating of 200 psi. The integrated actuator operates on 24 volts AC or DC and supports modulating control via BACnet MS/TP, Modbus RTU, and MP-Bus communication protocols. Stainless steel trim provides corrosion resistance in chilled water and heating hot water applications. Licensed HVAC technicians and building automation specialists are the primary installers of this assembly.

This valve assembly is suited for commercial hydronic systems where variable flow and pressure independence are required for zone-level control. Typical applications include air handling unit coil circuits, fan coil units, and chilled or hot water distribution in variable primary or primary-secondary hydronic plants. The equal percentage flow characteristic makes it well matched to modulating control loops where precise flow management across a wide range of operating conditions is essential. The non-spring return actuator retains its last commanded position on power loss.

Key Features

• Pressure independent design maintains rated flow regardless of differential pressure fluctuations in the system
• Rated flow of 18.2 GPM with 200 psi close-off pressure
• Dual-voltage actuator accepts 24 volts AC or 24 volts DC supply
• Modulating BACnet MS/TP, Modbus RTU, and MP-Bus communication support for building automation integration
• Stainless steel trim for durability in both chilled water and heating hot water service
• Non-spring return, electric actuator with 45 inch-pounds of torque
• Female NPT threaded connection for standard pipe installation

Compatibility

Designed as an OEM-style pressure independent control valve assembly for commercial hydronic systems requiring 2-way modulating flow control with BACnet MS/TP, Modbus RTU, or MP-Bus network communication.

Installation Notes

Installation should be performed by a licensed HVAC technician or building automation controls specialist familiar with hydronic piping and low-voltage wiring practices. Isolate and depressurize the hydronic system and shut off all electrical power to the circuit before beginning installation or removal. Female NPT connections should be made with appropriate thread sealant rated for the fluid service. BACnet, Modbus, or MP-Bus network wiring must comply with applicable local codes and the building automation system wiring requirements.

Technical Specifications

• Valve Pattern: 2-Way
• Valve Size: 1 inch
• Flow Rate: 18.2 GPM
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Connection Type: Female NPT Threaded
• Supply Voltage: 24 volts AC / 24 volts DC
• Actuator Type: Electric, Non-Spring Return
• Actuator Torque: 45 inch-pounds
• Control Signal: Analog, Communicating (BACnet MS/TP, Modbus RTU, MP-Bus)
• Trim Material: Stainless Steel
• Assembly Type: Valve and Actuator Assembly

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: EP100+LRX-E
