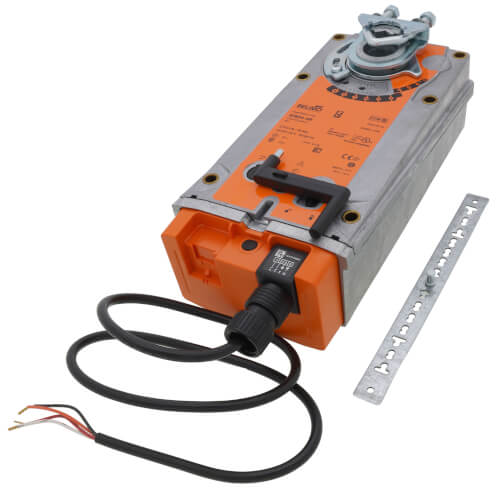

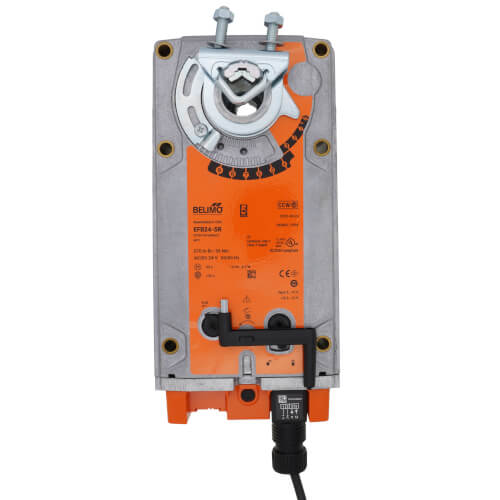

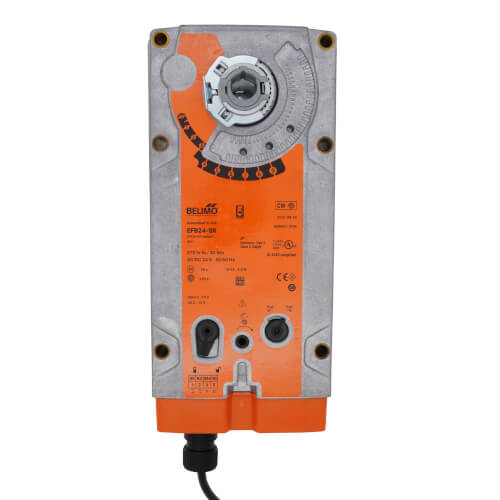

Belimo EFB24-SR Direct Coupled Actuator 270 in-lb

Product Description

The Belimo EFB24-SR is a direct coupled actuator designed for use in HVAC systems. This actuator provides proportional modulation for dampers. It operates with a 2 to 10 VDC control signal or 4 to 20 mA with additional components. This unit mounts directly onto a damper shaft with a diameter of up to one point zero five inches using its universal clamp.

• Torque rating: 270 lb-in
• Power supply: 24 VAC and 24 VDC
• Fail-safe spring return mode

Product Highlights

This actuator is capable of being stalled anywhere in its normal rotation without mechanical end switches. It features brushless DC motor technology for enhanced performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: EFB24-SR

Technical Specifications

• Power Consumption: 8 W running, 4.5 W holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Weight: 12.47 lbs
• Shipping Dimensions: 19.45 in. length, 12.55 in. width, 8.05 in. height
