Product Description

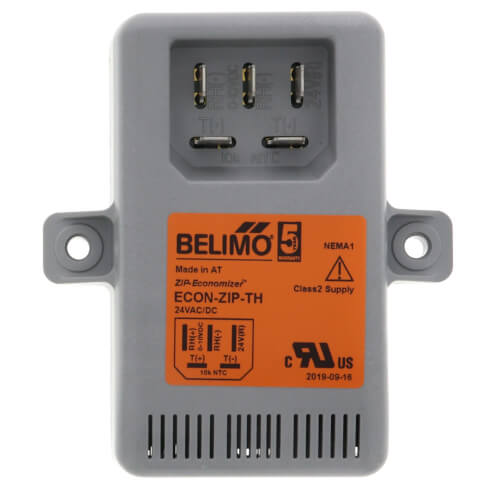

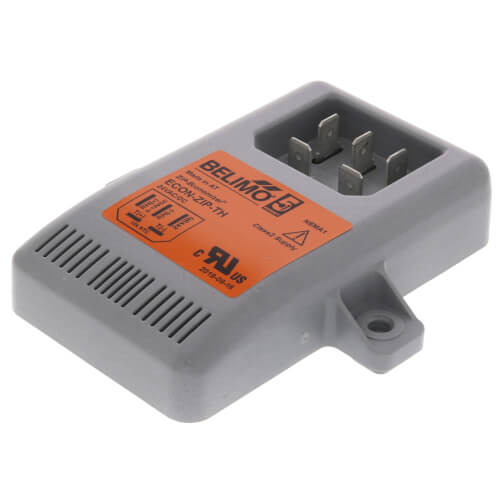

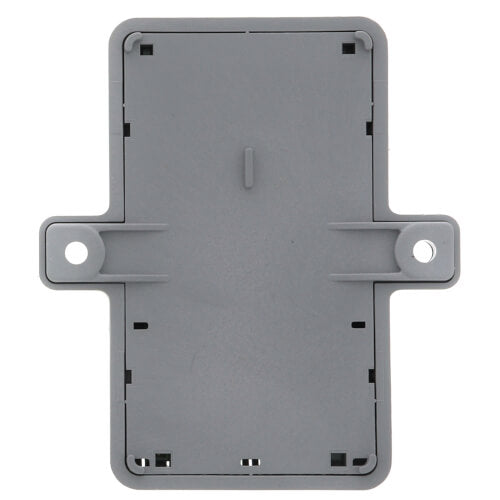

The Belimo ECON-ZIP-TH is a ZIP Economizer Temperature and Humidity Sensor. This sensor is designed to measure temperature and humidity in outdoor or return air locations. It features two discrete output channels for temperature and humidity, which can be measured independently with a multimeter. This capability allows for flexible installation options. The ECON-ZIP-TH sensor can function effectively in outdoor air intake for single enthalpy changeover and can have another sensor placed in the return air stream for differential changeover.
- Two discrete channels for temperature and humidity measurement
- Not needed to use a separate temperature sensor
- Large operating temperature and humidity range
Product Highlights
This sensor is essential for HVAC applications requiring precise control over indoor climate conditions, ensuring that energy efficiency is optimized.
Product Information
Standard Information
-
Brand: Belimo
-
Product Type: Accessory
Technical Specifications
-
Power Supply: AC 24V
-
Degree of Protection: IP54
-
Current Consumption: Max 25mA
-
Temperature Range: -40°F to 140°F
-
Humidity Range: 0 to 100% RH
-
Rated Impulse Voltage: 800V
-
Connectors: 1/4 male spade connectors
-
Agency Listing: UL60730-1, -2-9
