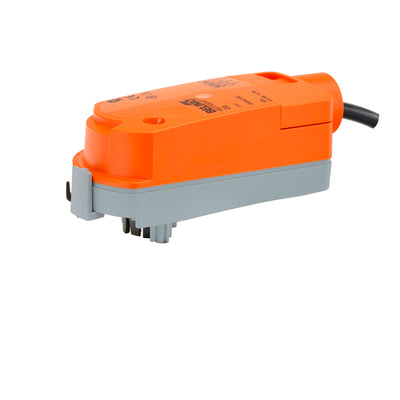

Belimo CQX24-SR Valve Actuator Non Fail-Safe AC/DC24V 2-10V Modulating

Product Description

The Belimo CQX24-SR is a valve actuator designed for modulating control. This non fail-safe actuator operates on AC or DC voltage, making it suitable for a variety of HVAC applications. It is engineered to provide precise control in systems utilizing chilled or hot water with up to sixty percent glycol.

• Operates with AC/DC voltage of twenty-four volts.
• Features a controllable flow range of seventy-five B0.
• Offers a valve size of point five inches.

Product Highlights

Belimo's CQX24-SR valve actuator is designed for reliability in heating and cooling systems. Its non fail-safe feature and modulating capabilities make it ideal for various flow control tasks.

Product Information

Standard Information

• Brand: Belimo
• Part Number: CQX24-SR

Technical Specifications

• Valve Specifications
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 B0
• Cv: 1.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.5 [15]
• Actuator Specifications
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 0.3 W
• Power Consumption (Running): 0.4 W
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
