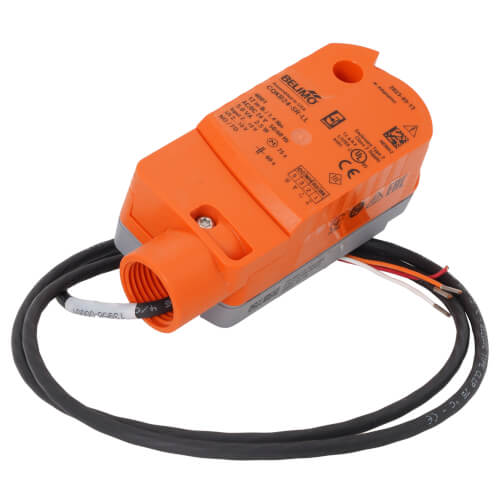

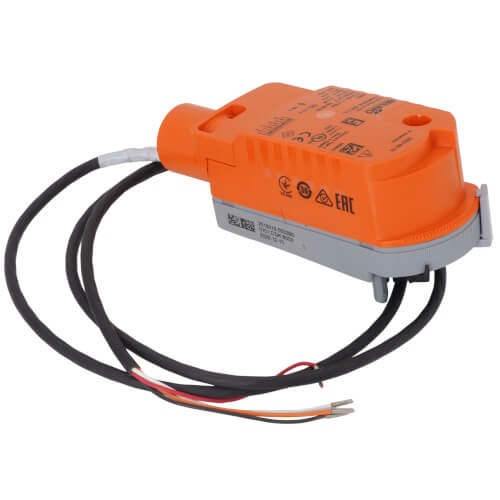

Belimo CQKB24-SR-LL Direct Coupled Actuator, 12 in-lb

Product Description

The Belimo CQKB24-SR-LL is a direct coupled actuator designed for 12 in-lb torque applications. It functions with a modulating control signal and is suitable for HVAC systems. This actuator operates on 24 VAC and is compatible with 2 to 10 VDC or 4 to 20 mA control signals.

• Actuator mounts directly to the valve without tools.
• Designed for efficiency and reliability in HVAC applications.
• Features electronic fail-safe functionality.

Product Highlights

This product is built for direct mounting to valves, eliminating the need for extra linkage, making installations simpler.

Product Information

Standard Information

• Brand: Belimo
• Part Number: CQKB24-SR-LL

Technical Specifications

• Operating Voltage: 24 VAC/DC
• Torque: 12 in-lb
• Control Signal: 2 to 10 VDC or 4 to 20 mA
• Power Consumption: 2.5 W Running, 0.5 W Holding
• Electrical Connection: 3 ft. 18 GA plenum cable
• Temperature Range: 35 F to 104 F
• Degree of Protection: IP40
• Dimension: NEMA 2
