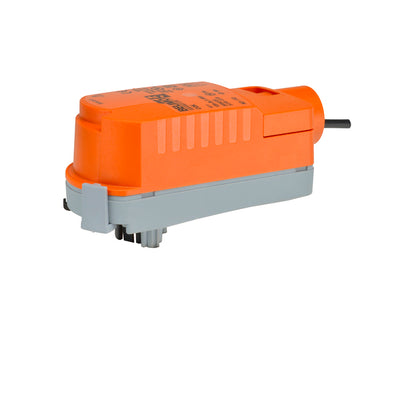

Belimo CQKB24-S-LL Valve Actuator Electronic FS 24V On/Off

Product Description

The Belimo CQKB24-S-LL is a valve actuator designed for effective control in various applications. This product operates on 24V power and features a fail-safe mechanism, ensuring reliability. It is primarily used for controlling the flow of potable water in HVAC systems.

• Electrical fail-safe mechanism
• On/Off control type
• Angle of rotation is ninety degrees

Product Highlights

This actuator is suitable for use in systems requiring precise flow control. It provides quick response times with a running time of less than sixty seconds in fail-safe mode.

Product Information

Standard Information

• Brand: Belimo
• MPN: CQKB24-S-LL

Technical Specifications

• Actuator Type: Electrical fail-safe
• Angle of Rotation: 90
• Auxiliary Switches: 1 x SPST
• Control Type: On/Off
• Cv: 32
• Degree of Protection: IP40 NEMA2
• Electrical Connection: Cable
• End Fitting: Internal thread
• Fluid: Potable water
• Pattern: 2-way
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Pressure Independent: NO
• Product Type: Combo
• Running Time (Fail-safe): < 60 s
• Running Time (Motor): 75s / 90B0
• Valve Size: 0.5 [15]
• Voltage AC/DC: AC/DC 24 V
