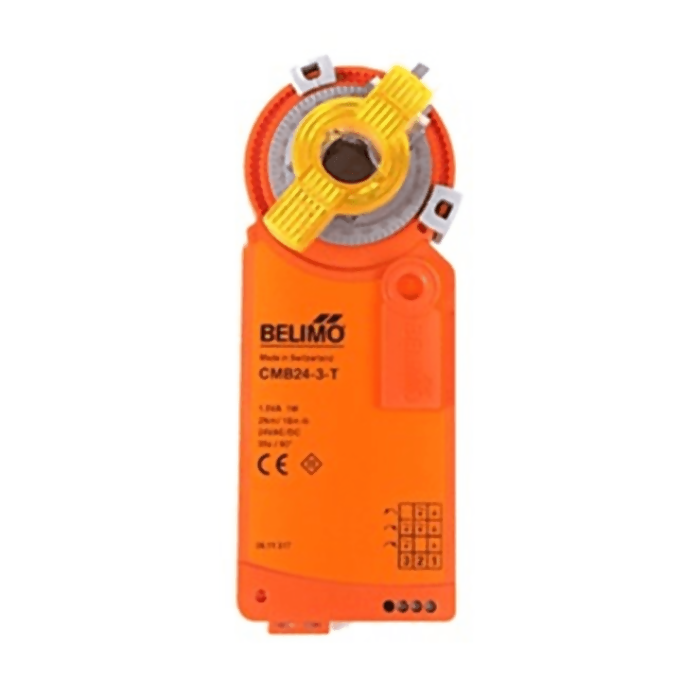

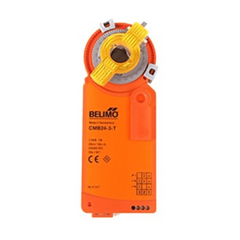

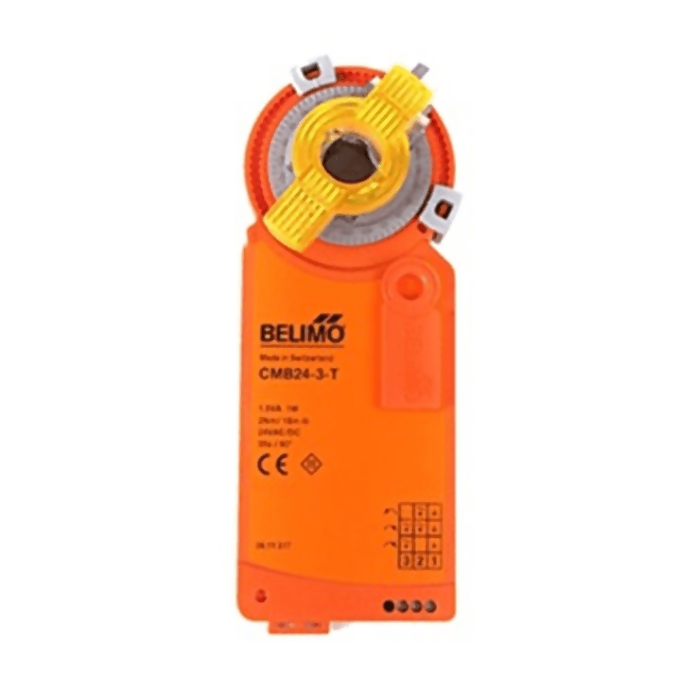

Belimo CMB24-SR-R Direct Coupled Actuator 18 in-lb

Product Description

The Belimo CMB24-SR-R is a direct coupled actuator designed for operation in HVAC systems. It is suitable for control signals of 2 to 10 VDC or 4 to 20 mA. This actuator features high torque capabilities of 18 in-lb and operates at 24 VAC. It allows for efficient modulation of air control dampers, making it ideal for ventilation applications.

• Modulating control with a torque rating of 18 in-lb.
• Operates efficiently with a brushless DC motor.
• Manual operation possible using a magnet.

Product Highlights

This actuator provides reliable performance with features such as adjustable angle of rotation and overload protection.

Product Information

Standard Information

• Brand: Belimo
• Part Number: CMB24-SR-R

Technical Specifications

• Power Consumption: 1.5 W Running
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA cable, NEMA 2 (IP54)
• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Torque: 18 in-lb [2 Nm]
• Running Time (90 degrees): 35 s
• Angle of Rotation: 0 to 287.5 degrees
• Control Type: DC 2...10 V
