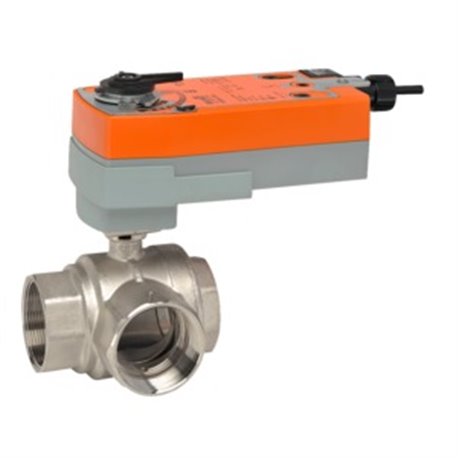

Belimo B352+AFRBUP | CCV | 2 | 3 Way | 83 Cv | w/ Spg Rtn | 24 -240V | On/Off

Product Description

The Belimo B352+AFRBUP is a 3-way control valve designed for efficient flow regulation. This valve operates with a Cv of eighty-three and supports both chilled and hot water applications with up to sixty percent glycol. It is suitable for HVAC systems that require precise and reliable control of fluid flow.

• 3-way pattern for versatile installation
• Spring return actuator for reliable operation
• Voltage range of 24 to 240 volts for versatile applications

Product Highlights

This valve is made for HVAC specialists looking for durable solutions that ensure effective control and energy efficiency.

Product Information

Standard Information

• Brand: Belimo
• MPN: B352+AFRBUP

Technical Specifications

• Valve Size: 2 inches (50 mm)
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Control Type: On/Off
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 7 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
