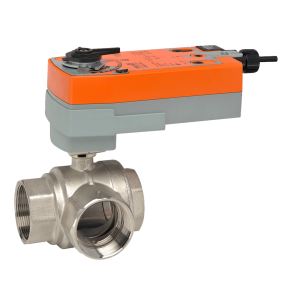

Belimo B352+AFRB24-S CCV Assembly 3 Way 2 in NPT 83 Cv

Product Description

The Belimo B352+AFRB24-S is a characterized control valve designed for various HVAC applications. This valve is suitable for air handling units that involve heating or cooling coils. Constructed from forged brass and featuring a nickel-plated brass body, it ensures durability and longevity in hydronic systems. The valve operates with a direct coupled spring return actuator and is rated for 24 VAC operation.

• Flow capacity of 83 Cv
• Rated for water temperatures up to 250°F
• Zero leakage and self-cleaning ball valve design

Product Highlights

This Belimo valve is ideal for use in either hot or chilled water systems, including those with up to sixty percent glycol content. Its robust construction and reliable performance make it essential for HVAC professionals.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B352+AFRB24-S

Technical Specifications

• Valve Size: 2 inches
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified For Constant Common Port Flow
• Close-Off Pressure: 200 psi
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Electrical Connection: Two 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Power Consumption: 5 W Running, 2.5 W Holding
• Auxiliary Switch: 2 x SPDT
• Degree of Protection: NEMA 2, IP54
