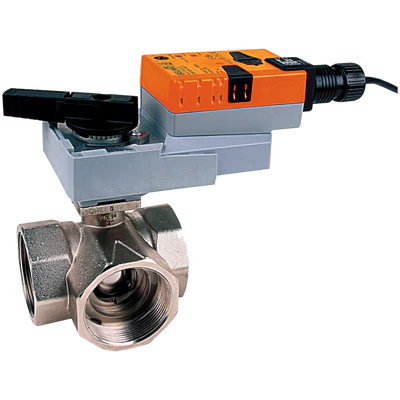

Belimo B350L+ARX24-MFT | Ball Valve | 2 | 3 Way | 87 Cv | w/ Non-Spg | 24V | MFT

Product Description

The Belimo B350L+ARX24-MFT is a three-way ball valve with a size of two inches. It features a controllable flow range and is commonly used in HVAC systems for water flow management.

• Rated Cv of eighty-seven for efficient flow control
• Operates at twenty-four volts with a non-fail-safe actuator
• Chrome plated brass trim for added durability

Product Highlights

This valve is suitable for both chilled and hot water applications, allowing for fluid temperatures up to sixty percent glycol.

Product Information

Standard Information

• Brand: Belimo
• MPN: B350L+ARX24-MFT

Technical Specifications

• Angle of Rotation: ninety degrees
• Close-off Pressure: two hundred kPa
• Controllable Flow Range: seventy-five degrees
• Cv: eighty-seven
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to sixty percent glycol
• Pattern: Three-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: two inches (fifty mm)
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Manual Override: External push button
• Power Consumption (Holding): 1.3 W
• Power Consumption (Running): 3.5 W
• Running Time (Motor): one hundred fifty seconds for ninety degrees
• Voltage AC/DC: twenty-four volts
