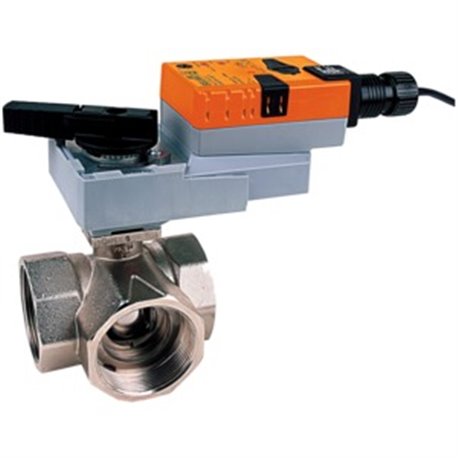

Belimo B350L+ARB24-3-S Ball Valve 2 3 Way 87 Cv Replacement MPN

Product Description

The Belimo B350L+ARB24-3-S is a ball valve for three-way applications. This valve features a size of two inches and a flow coefficient (Cv) of eighty-seven. It operates on twenty-four volts with a floating control type. Ideal for use in chilled or hot water systems containing up to sixty percent glycol.

• 3-way pattern for versatile installation
• Actuator uses non fail-safe design
• External push button for manual override

Product Highlights

This valve is suitable for commercial or industrial applications involving HVAC systems. Its chrome plated brass trim ensures durability and efficient performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B350L+ARB24-3-S

Technical Specifications

• Valve Size: 2 [50]
• Cv: 87
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Flow Range: 75B0
• Control Type: Floating/3-point
• Degree of Protection: IP54 NEMA2
• Voltage AC/DC: AC/DC 24V
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 90 seconds
• Auxiliary Switches: 1 x SPDT
• Manual Override: External push button
