Belimo B350L+AFRB24 Ball Valve 2 3 Way 87 Cv w/ Spg Rtn 24V On/Off

Product Description

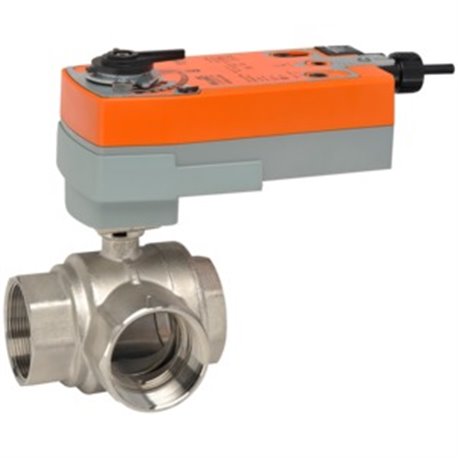

The Belimo B350L+AFRB24 is a 2 inch, three-way ball valve designed for on/off control in HVAC applications. This product is suitable for controlling the flow of chilled or hot water with up to sixty percent glycol mixture. The valve features a chrome plated brass trim and is equipped with a spring return actuator.

• Three-way design for versatile flow control
• Specifically designed for HVAC systems
• Rated CV of eighty-seven for efficient performance

Product Highlights

This ball valve is ideal for maintaining consistent temperature control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B350L+AFRB24

Technical Specifications

• Valve Size: 2 inches (50 mm)
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60 percent glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Controllable Flow Range: 75B0
• Actuator Type: Spring return
• Control Type: On/Off
• Voltage AC/DC: 24V
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank supplied
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
