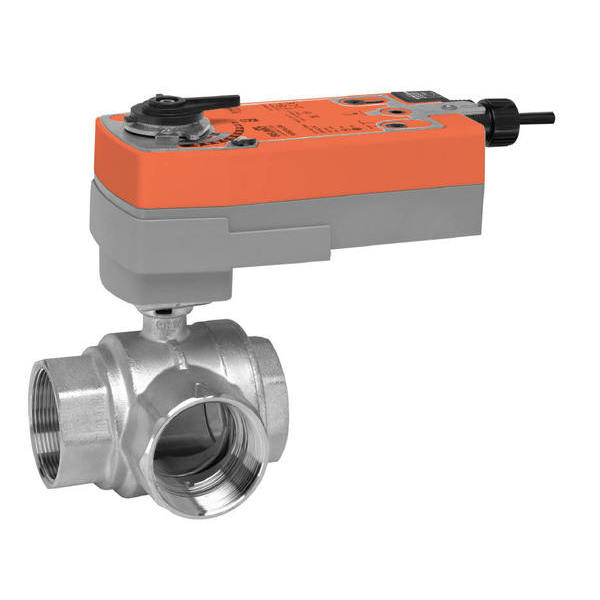

Belimo B350+AFRX24-MFT CCV Assembly 3 Way 2 in NPT 57 Cv

Product Description

The Belimo B350+AFRX24-MFT is a characterized control valve designed for HVAC applications. This valve is typically used in air handling units and is suitable for chilling or heating coils in hydronic systems with variable or constant flow. Its durable construction, including a forged brass body and stainless steel components, ensures long-lasting performance.

• Self-cleaning ball valve design
• Rated for water temperatures up to 250 degrees Fahrenheit
• Multi-Function technology for flexible control

Product Highlights

This valve's modulating spring return actuator allows for precise control of flow, with an operational range of -22 degrees Fahrenheit to 122 degrees Fahrenheit. It is suitable for applications with chilled or hot water and glycol mixtures.

Product Information

Standard Information

• Brand: Belimo
• MPN: B350+AFRX24-MFT

Technical Specifications

• Valve Size: 2 inches
• Flow Characteristic: A-Port Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Power Consumption: 7.5 W running, 3 W holding
• Angle of Rotation: 90 degrees
• Trim: Stainless steel
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: 3 ft. 18 GA appliance cable
