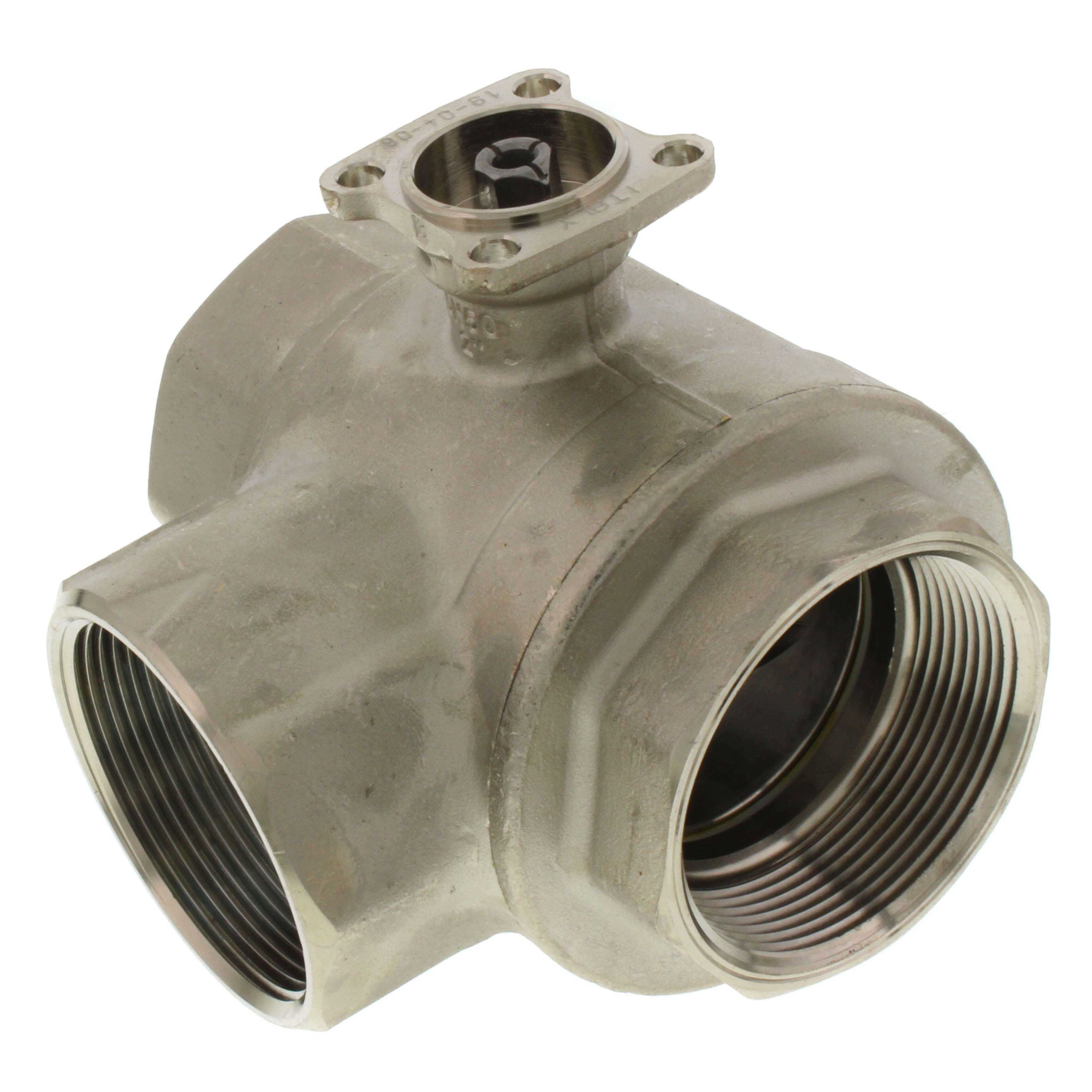

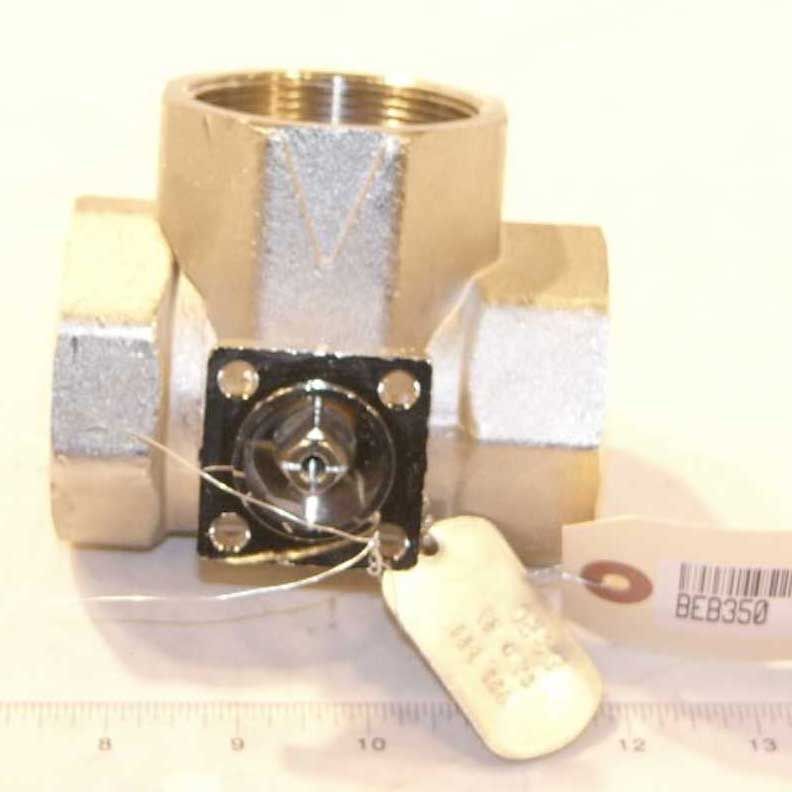

Belimo B350 CCV 3 Way 2 in NPT 57 Cv

Product Description

The Belimo B350 is a characterized control valve designed for HVAC applications. It features a two-inch NPT connection and provides a flow capacity of fifty-seven Cv. This valve is used primarily in air handling units, allowing for efficient control of heating or cooling coils.

• Constructed with a forged brass body and a nickel-plated finish.
• Suitable for hydronic systems with both variable and constant flow.
• Self-cleaning ball valve design for zero leakage.

Product Highlights

This valve operates effectively in cooling and heating systems up to two hundred fifty degrees Fahrenheit with a maximum fluid glycol content of sixty percent.

Product Information

Standard Information

• Brand: Belimo
• MPN: B350

Technical Specifications

• Fluid: Chilled or hot water up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Body Pressure Rating: 400 psi
• Valve Size: 2 inches (50 mm)
• Trim: Stainless steel
• End Fitting: Internal thread
