Belimo B349+AFRX24-MFT-S | CCV | 2 | 3 Way | 46 Cv | w/ Spg Rtn | 24V | MFT | SW

Product Description

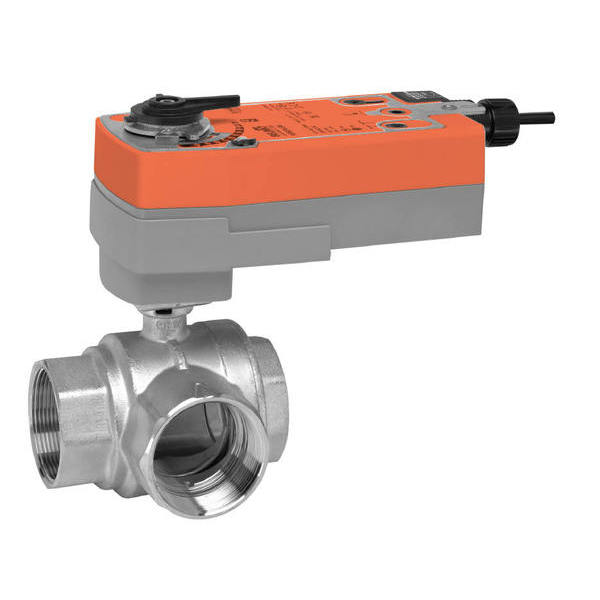

The Belimo B349+AFRX24-MFT-S is a 2 inch, 3-way control valve designed for use in HVAC applications. This valve has a Cv rating of 46 and operates with a spring return actuator powered by 24V. It is ideal for controlling chilled or hot water with up to sixty percent glycol.

• Valve Size: 2 inches
• Fluid Type: Chilled or hot water up to 60% glycol
• Pattern: 3-way

Product Highlights

This valve is built for precise control of fluid flow in hydronic systems. The stainless steel trim and internal thread end fitting ensure long-lasting performance and reliability.

Product Information

Standard Information

• Brand: Belimo
• MPN: B349+AFRX24-MFT-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 46
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 2 inches (50 mm)
• Actuator Type: Spring return
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: cable
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 3 W
• Power Consumption (Running): 7.5 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
