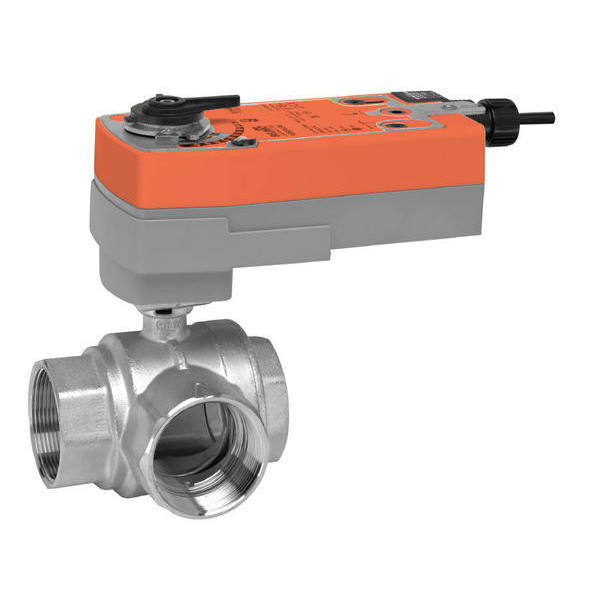

Belimo B348+AFRX24-MFT-S | CCV | 2 | 3 Way | 37 Cv | w/ Spg Rtn | 24V | MFT | SW

Product Description

Belimo B348+AFRX24-MFT-S is a control valve designed for precise flow regulation in HVAC systems. This product is essential for managing hot or chilled water flow, optimizing system efficiency.

• 3-way valve design for flexible flow control
• Spring return actuator enhances system responsiveness
• Compatible with both AC and DC voltage systems

Product Highlights

Reliable and efficient, this valve meets the needs of HVAC professionals for effective fluid management.

Product Information

Standard Information

• Manufacturer: Belimo
• Model Number: B348+AFRX24-MFT-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75-0
• Flow Coefficient (Cv): 37
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water up to 60% glycol
• Valve Pattern: 3-way
• Pressure Independent: No
• Trim Material: Stainless steel
• Valve Size: 2 inches
• Actuator Type: Spring return
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 3 W
• Power Consumption (Running): 7.5 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 150 seconds for 90 degrees
• Voltage AC/DC: AC/DC 24 V
