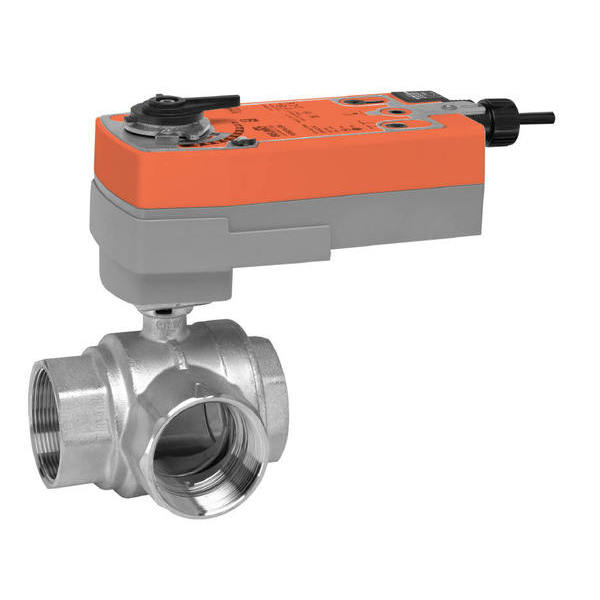

Belimo B348+AFRX24-MFT CCV Assembly 3 Way 2 In 37 Cv

Product Description

The Belimo B348+AFRX24-MFT is a characteristically designed control valve ideal for HVAC applications. This three-way valve features a two-inch NPT connection and a flow coefficient of thirty-seven. It is suitable for both chilled and hot water systems with up to sixty percent glycol.

• Valve functionality in air handling units on heating and cooling coils.
• Designed for hydronic systems with variable or constant flow.
• Ball valve design allowing for self-cleaning and zero leakage.

Product Highlights

The B348+AFRX24-MFT valve integrates multiple functions for efficient control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B348+AFRX24-MFT

Technical Specifications

• Service: Chilled, hot water, up to 60% glycol
• Flow characteristic: A-Port equal percentage, B-Port modified for constant common port flow
• Operating conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical connection: 3 ft 18 GA appliance cable with half-inch conduit connector
• Power consumption: 7.5 W running, 3 W holding
• Close-off pressure: 200 psi
• Angle of rotation: 90 degrees
• Degree of protection: IP54 NEMA 2 UL enclosure type 2
