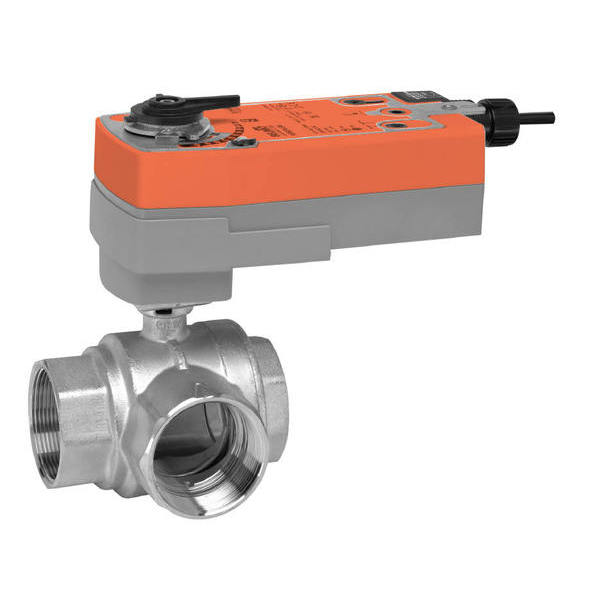

Belimo B347+AFRX24-MFT-S CCV Assembly 3 Way 2 in NPT 29 Cv

Product Description

The Belimo B347+AFRX24-MFT-S is a versatile control valve assembly designed for HVAC applications. This unit features a three-way valve design with two-inch NPT connections and a flow coefficient of twenty-nine. It is ideal for use in air handling units and fan coil units, ensuring efficient operation in both heating and cooling systems.

• Constructed from forged brass with a nickel-plated body.
• Includes a stainless steel ball and stem for durability.
• Operates using a direct-coupled actuator with spring return, rated at one hundred eighty inch-pounds, powered by twenty-four volts AC.

Product Highlights

This control valve supports various applications, including chilled and hot water systems. It is equipped with advanced multi-function technology, ensuring optimal performance in diverse environments.

Product Information

Standard Information

• Brand: Belimo
• Model Number: B347+AFRX24-MFT-S

Technical Specifications

• Valve Size: 2 inches
• Flow Coefficient (Cv): 29
• Angle of Rotation: 90 degrees
• Power Consumption: 7.5 W Running, 3 W Holding
• Operating Conditions: -22 F to 122 F
• Close-Off Pressure: 200 psi
• Electrical Connection: Two 3 ft. 18 GA appliance cables
• Fluid: Chilled or hot water up to 60% glycol
