Belimo B347+AFRX24-MFT CCV Assembly 3 Way 2 in NPT 29 Cv

Product Description

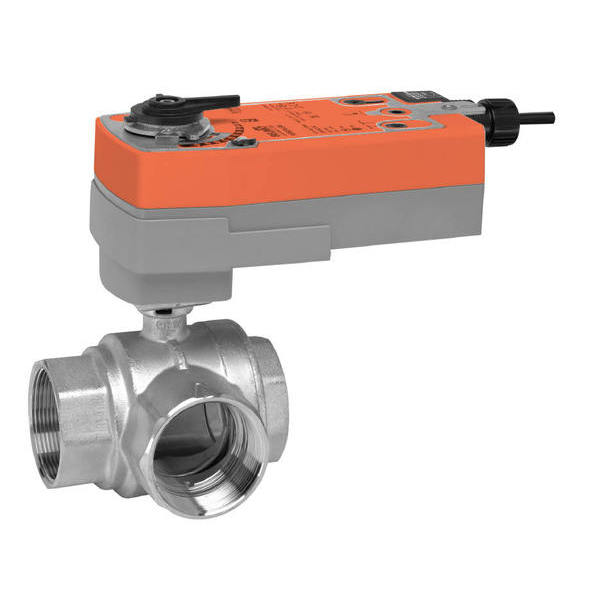

The Belimo B347+AFRX24-MFT is a 3-way control valve assembly designed for HVAC applications. This valve features a forged brass body with a nickel-plated finish and includes a direct-coupled actuator. It operates at 24 VAC and provides modulating action with a spring return function.

• Suitable for heating and cooling coils in air handling units.
• Designed for use in hydronic systems with variable or constant flow.
• Self-cleaning ball valve design ensures zero leakage.

Product Highlights

This valve is capable of handling water temperatures up to two hundred fifty degrees Fahrenheit and includes MFT functionality for versatile applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B347+AFRX24-MFT

Technical Specifications

• Size: 2 inches
• Flow Coefficient (Cv): 29
• Close-Off Pressure: 200 psi
• A-Port Characteristic: Equal Percentage
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Power Consumption: 7.5 W running, 3 W holding
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 inch conduit connector
• Degree of Protection: NEMA 2, IP54
