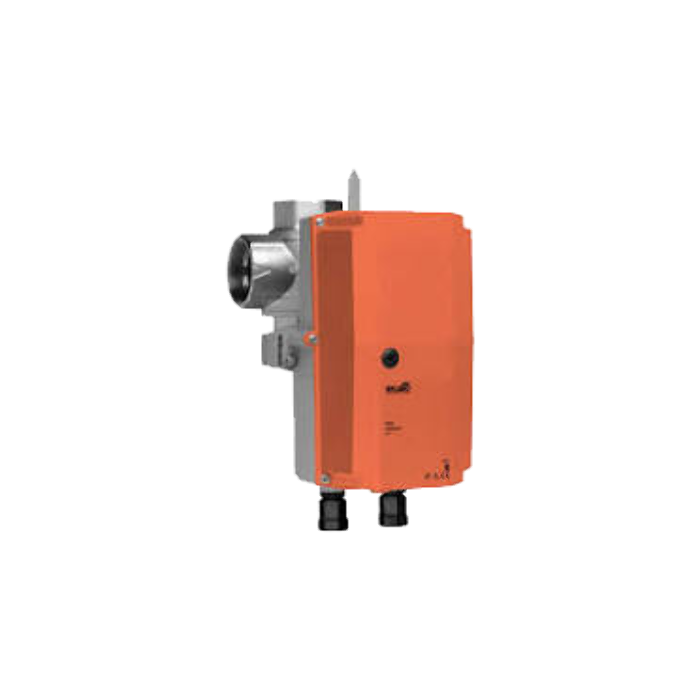

Belimo B341+ARX24-SR-T N4 CCV Assembly 3 Way 1-1/2 in NPT 46 Cv

Product Description

The Belimo B341+ARX24-SR-T N4 is a characterized control valve designed for reliable operation in HVAC applications. This three-way valve features a one and one-half inch NPT connection and a flow capacity of forty-six Cv. The valve is suitable for both heating and cooling coils, making it versatile for air handling units and fan coil units.

• Durable forged brass construction with a nickel-plated brass body
• Direct coupled actuator rated at 180 in-lb torque
• Modulating control compatible with 24 VAC signals

Product Highlights

The Belimo B341+ARX24-SR-T N4 is essential for hydronic systems with variable or constant flow requirements. Its ball valve design ensures self-cleaning properties and zero leakage, providing a reliable long-term solution in various operating conditions.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B341+ARX24-SR-T N4

Technical Specifications

• Housing: IP66/67, NEMA 4X, UL Enclosure Type 4X
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 2.5 W running, 0.4 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-port equal percentage, B-port modified for constant common port flow
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: Terminal block
