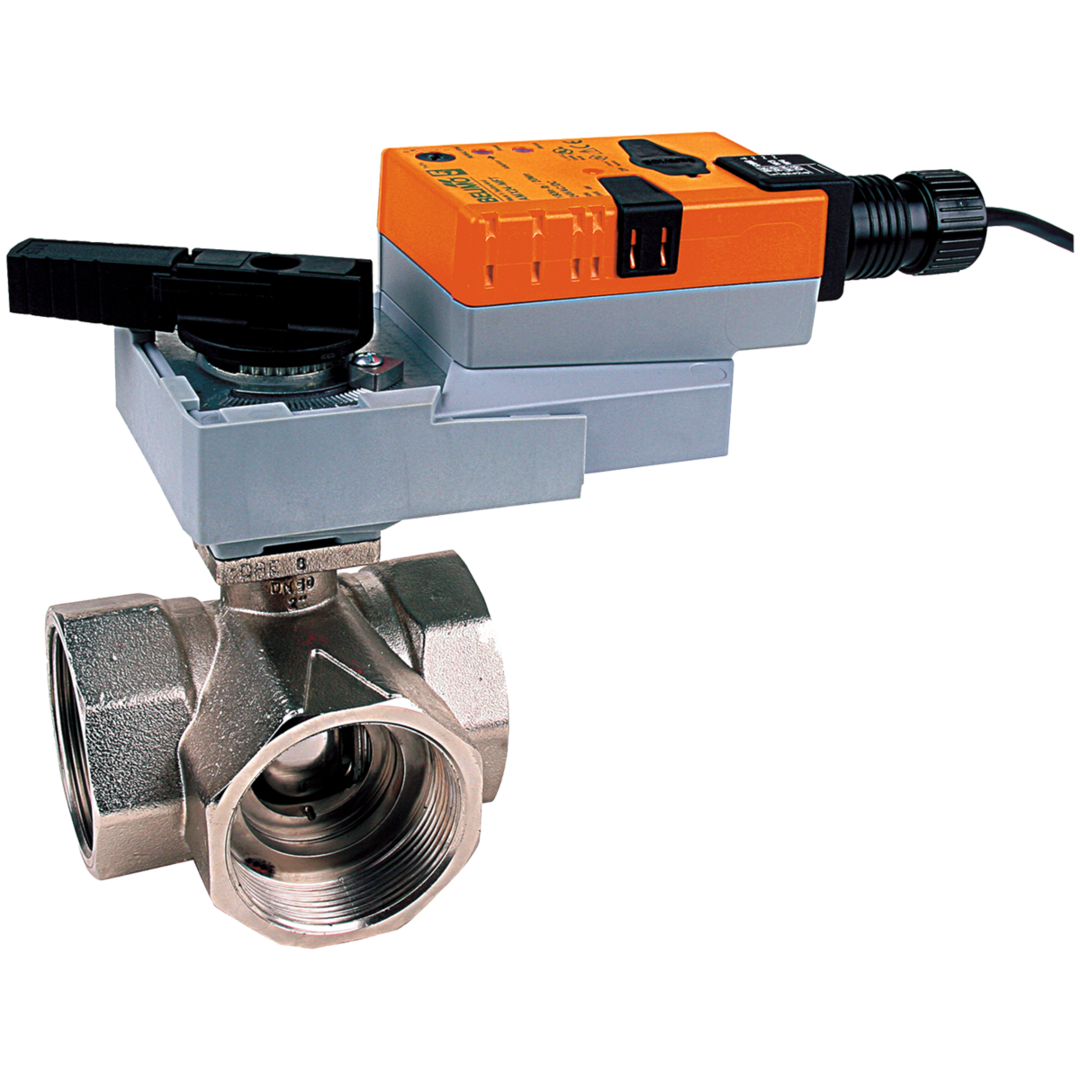

Belimo B340L+ARX24-MFT Ball Valve Assembly 3 Way 1-1/2 in NPT

Product Description

The Belimo B340L+ARX24-MFT is a ball valve assembly designed for HVAC applications. This model features a three-way design and a size of one and one-half inches NPT. The valve is equipped with a modulating actuator and is suitable for both chilled and hot water systems.

• Suitable for air handling units and fan coil units.
• Self-cleaning design with zero leakage.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve offers functionality within hydronic systems featuring variable or constant flow.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B340L+ARX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 3.5 W Running, 1.3 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Modified Linear
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 18 GA Plenum Rated Cable With 1/2 in Conduit Connector
