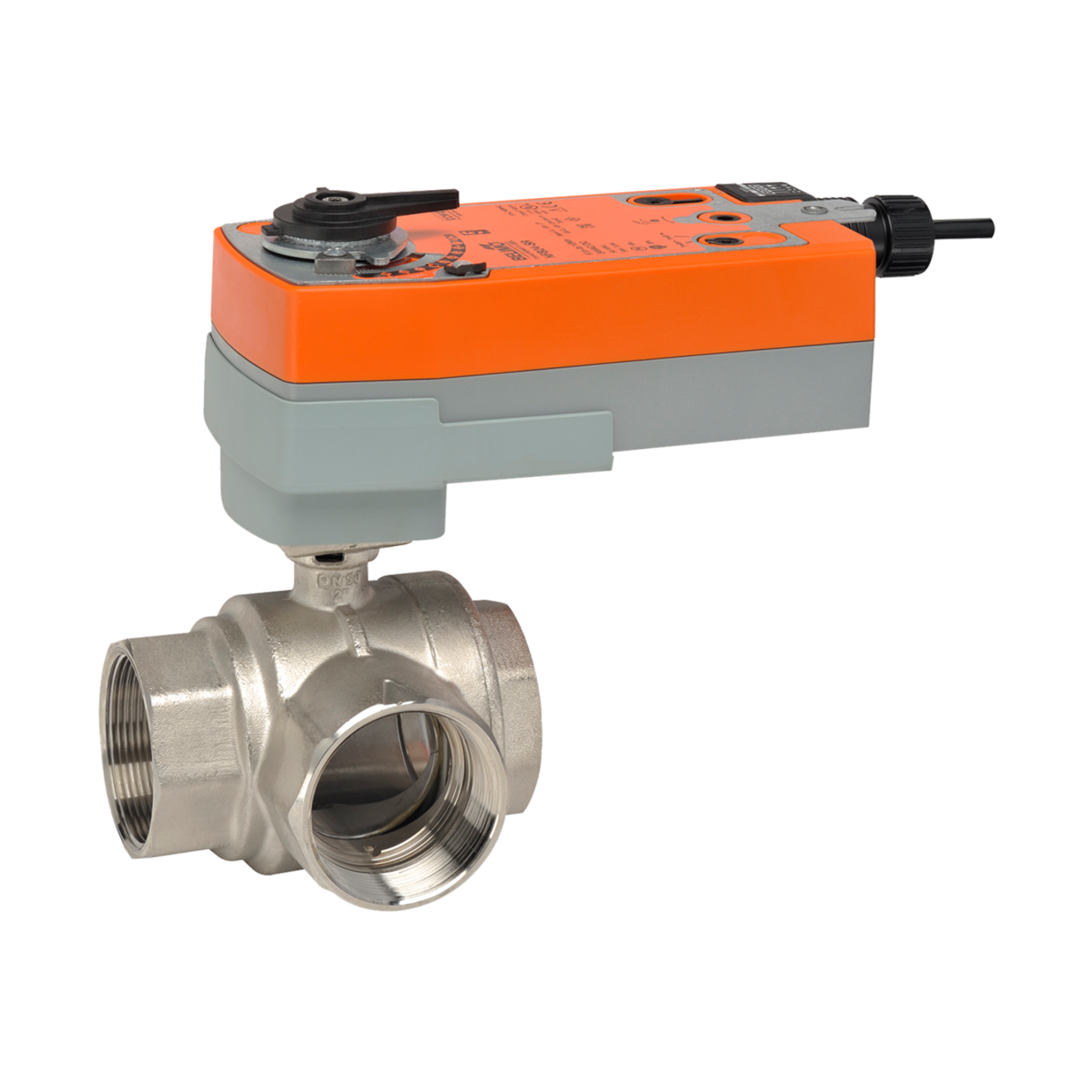

Belimo B340L+AFRX24-MFT Ball Valve Assembly 3 Way 1-1/2 in NPT

Product Description

The Belimo B340L+AFRX24-MFT is a 3-way ball valve assembly that measures one and a half inches in NPT size. This product is essential for HVAC control, specifically within air handling units and fan coil heating or cooling systems. It features a forged brass body and chrome-plated brass ball for durability and reliable performance.

• Application in hydronic systems for variable or constant flow
• Self-cleaning design with a zero leakage assurance
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

The valve's modulating functionality and spring return actuator enhance operational efficiency. The integration of multi-function technology allows for versatile use in diverse applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B340L+AFRX24-MFT

Technical Specifications

• Close-off Pressure: 200 psi
• Flow Characteristic: Modified Linear
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable with 1/2 in. Conduit Connector
• Power Consumption: 7.5 W Running, 3 W Holding
• Service: Chilled, Hot Water, Up to 60% Glycol
• Housing: NEMA 2, IP54, UL Enclosure Type 2
