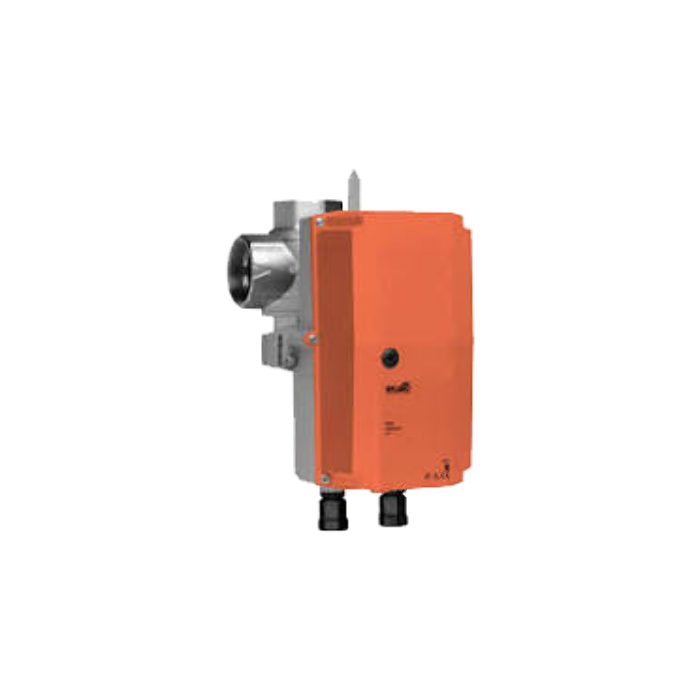

Belimo B340+ARX24-SR-T N4 CCV Assembly 3 Way 1-1/2 in NPT 37 Cv

Product Description

The Belimo B340+ARX24-SR-T N4 is a characterized control valve designed for HVAC systems. This valve works effectively in air handling units and fan coil units for both heating and cooling applications. It features a robust forged brass body with nickel plating and a stainless steel ball and stem. Its direct coupled actuator provides reliable performance with a torque rating of 180 in-lb. It operates at a voltage of 24 VAC and supports control signals ranging from 2 to 10 VDC or 4 to 20 mA.

• Suitable for hydronic systems with variable or constant flow.
• Ball valve design ensures zero leakage and self-cleaning.
• Rated for water temperatures up to 250°F.

Product Highlights

This valve is built for efficient control in heating and cooling systems. Its features make it ideal for replacing existing valves in HVAC setups.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B340+ARX24-SR-T N4

Technical Specifications

• Housing: IP66/67, NEMA 4X, UL Enclosure Type 4X
• Service: Chilled, hot water, up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port equal percentage, B-Port modified for constant common port flow
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Electrical Connection: Terminal block
• Power Consumption: 2.5 W running, 0.4 W holding
• Valve Size: 1.5 inches
