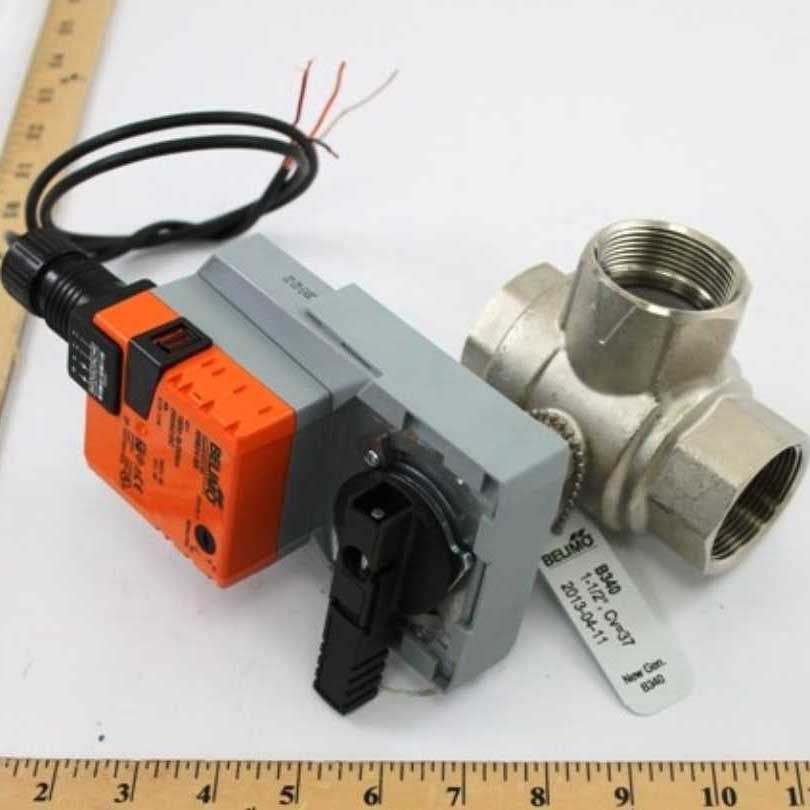

Belimo B340+ARB24-SR Characterized Control Valve 24V 3-Way

Product Description

The Belimo B340+ARB24-SR is a characterized control valve designed for efficient fluid control. This 3-way valve operates with a 24V power supply and offers a controllable flow range. It is equipped with a stainless steel trim and a non-fail-safe actuator.

• 3-way valve design
• 24V power supply
• Stainless steel trim

Product Highlights

This control valve is built to handle chilled or hot water with glycol content up to 60 percent. It features an internal thread end fitting and allows manual override with an external push button.

Product Information

Standard Information

• Brand: Belimo
• MPN: B340+ARB24-SR

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75
• Cv: 37
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1.5 inches
• Actuator Type: Non fail-safe
• Control Type: DC 2-10 V
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Manual Override: External push button
• Power Consumption (Holding): 0.4 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 90 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
