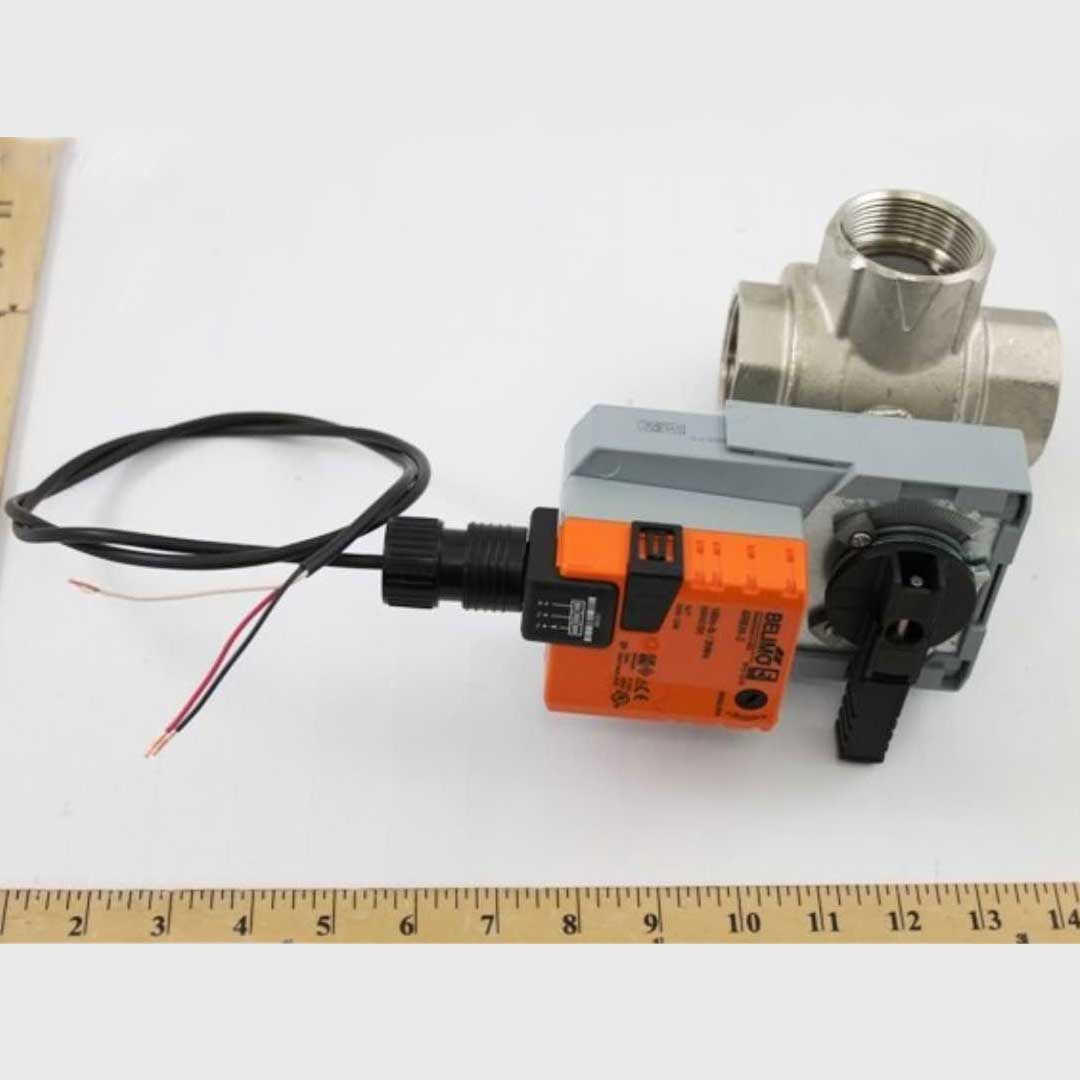

Belimo B340+ARB24-3 Characterized Control Valve 1.5 inches 3 Way 37 Cv Non-Spg 24V Floating

Product Description

The Belimo B340+ARB24-3 is a characterized control valve designed for HVAC systems. This product features a three-way mixing or diverting valve, with a size of 1.5 inches and a flow coefficient (Cv) of 37. It operates with a non-spring return actuator and supports 24V floating/3-point control.

• Three-way mixing or diverting valve
• 1.5 inches size
• 24V floating/3-point control

Product Highlights

This HVAC control valve is ideal for applications requiring precise control of fluid flow, such as chilled or hot water systems. The stainless steel trim ensures durability and reliability, making it suitable for various industrial uses.

Product Information

Standard Information

• Brand: Belimo
• MPN: B340+ARB24-3

Technical Specifications

• Valve Type: Three-way
• Flow Coefficient (Cv): 37
• Valve Size: 1.5 inches
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage: 24V AC/DC
• Angle of Rotation: 90 degrees
• Power Consumption (Running): 2.5 W
• Power Consumption (Holding): 0.5 W
• Running Time (Motor): 90 seconds / 90 degrees
• Manual Override: External push button
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Trim: Stainless steel
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Pressure Independent: No
