Belimo B340+AFRX24-MFT-S | CCV | 1.5 | 3 Way | 37 Cv | w/ Spg Rtn | 24V | MFT | SW

Product Description

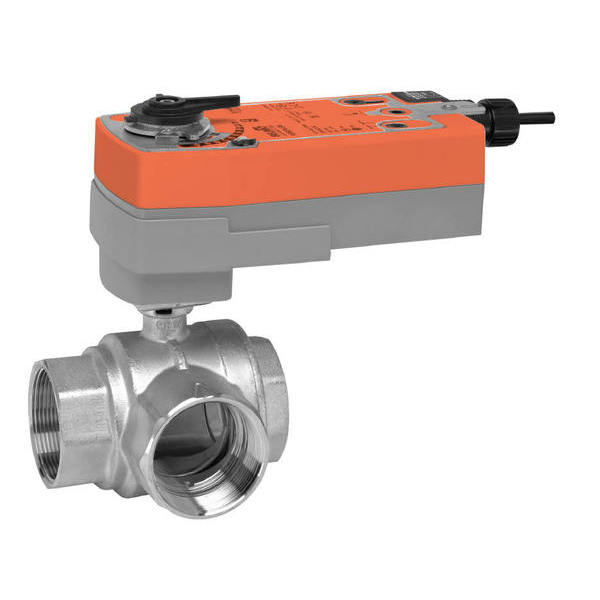

The Belimo B340+AFRX24-MFT-S is a valve actuator designed for effective control in HVAC systems. This product operates at twenty-four volts and is known for its spring-return feature.

• Three-way valve pattern for flexible flow management.
• Internal threading for easy installation.
• Compatible with chilled or hot water and up to sixty percent glycol fluid.

Product Highlights

The actuator is suitable for various applications, particularly in heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B340+AFRX24-MFT-S

Technical Specifications

• Valve Size: 1.5 inches
• Cv: 37
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Running): 7.5 W
• Running Time (Motor): 150 seconds for 90 degrees
