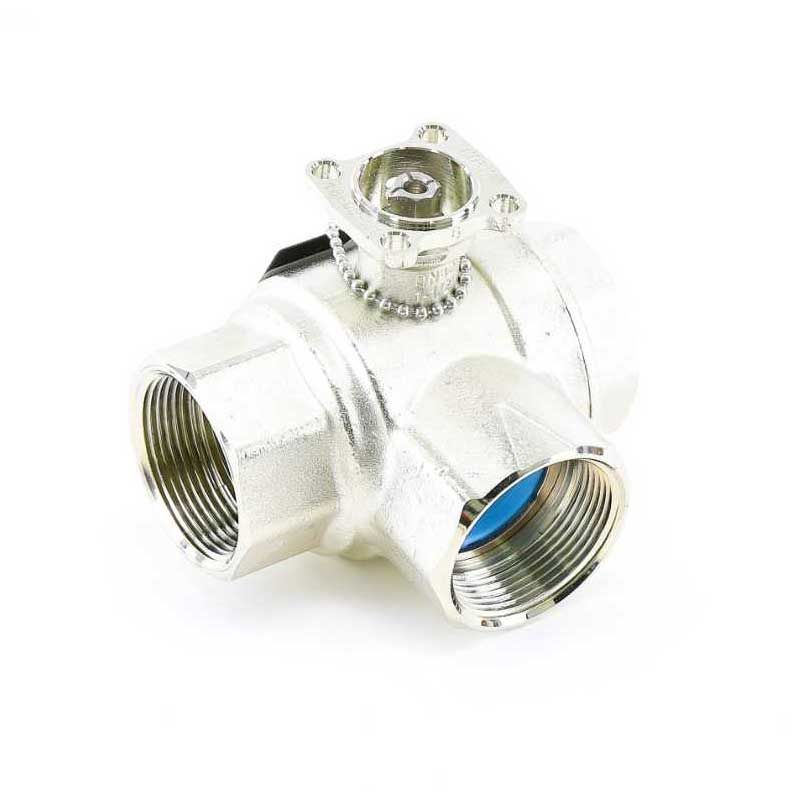

Belimo B340 CCV, 3 Way, 1-1/2 in NPT, 37 Cv

Product Description

The Belimo B340 is a characterized control valve designed for HVAC applications. This valve features a three-way design with a nominal size of one and a half inches and a flow coefficient of thirty-seven. It is suitable for use in air handling units and fan coil units, providing efficient control of chilled or hot water systems.

• Applications include air handling units, Unit Ventilators, and VAV box re-heat coils.
• Constructed with a nickel plated brass body and stainless steel ball and stem.
• Capable of handling water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

Ideal for hydronic systems with variable or constant flow, the B340 valve operates effectively in a variety of HVAC setups.

Product Information

Standard Information

• Brand: Belimo
• MPN: B340

Technical Specifications

• Valve Size: 1.5 inches
• Flow Capacity (Cv): 37
• Close Off Pressure: 200 psi
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• End Fitting: Internal thread
• Pressure Rating: Body pressure rating 400 psi
• Flow Characteristic: A-Port equal percentage, B-Port modified for constant common port flow
