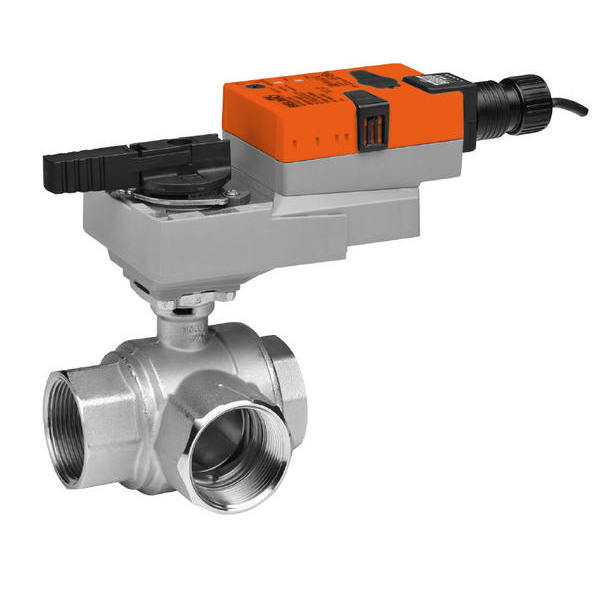

Belimo B339+ARB24-3-S CCV 1.5 3 Way 29 Cv w/ Non-Spg 24V

Product Description

The Belimo B339+ARB24-3-S is a three-way control valve designed for fluid management in heating and cooling systems. This valve operates effectively with chilled or hot water mixed with up to sixty percent glycol.

• Pressure independent design
• Utilizes a stainless steel trim for durability
• Compatible with AC/DC twenty-four volt electrical systems

Product Highlights

The B339+ARB24-3-S is built for reliability in various mechanical systems, providing precise flow control. This valve is ideal for applications in commercial and industrial settings.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B339+ARB24-3-S

Technical Specifications

• Valve Size: 1.5 inches
• Flow Coefficient (Cv): 29
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Valve Pattern: 3-way
• Pressure Independent: No
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage: AC/DC 24 volts
• Power Consumption (Running): 2.5 watts
• Power Consumption (Holding): 0.5 watts
