Belimo B339+AFRX24-MFT-S | CCV | 1.5 | 3 Way | 29 Cv | w/ Spg Rtn | 24V | MFT | SW

Product Description

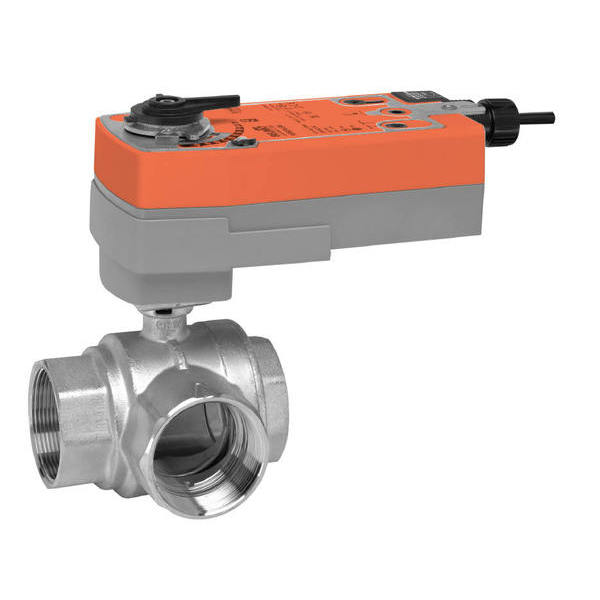

Belimo B339+AFRX24-MFT-S is a three-way valve actuator for controlling fluid flow. It operates with a spring-return mechanism and is designed for use with chilled or hot water systems. The actuator is suitable for applications that require precise control of water distribution in HVAC systems.

• 3-way valve with a controllable flow range of 75B0.
• Compatible with 24V AC/DC electrical connections.
• Internal thread end fittings for easy installation.

Product Highlights

Designed for efficient temperature control in HVAC systems, this valve actuator features a robust construction for reliable performance in various conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: B339+AFRX24-MFT-S

Technical Specifications

• Angle of Rotation: 90
• Controllable Flow Range: 75B0
• Cv: 29
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 1.5 inches [40]
• Actuator Type: Spring return
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: cable
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 3 W
• Power Consumption (Running): 7.5 W
• Running Time (Fail-safe): less than 20 s
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
