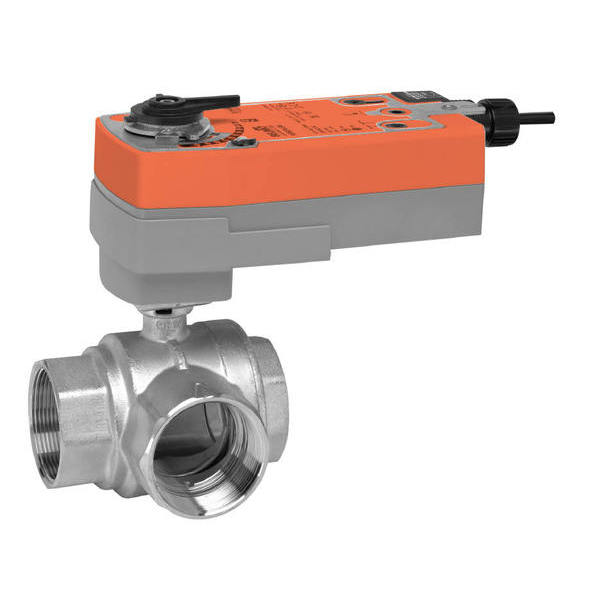

Belimo B339+AFRBUP CCV 1.5 3 Way 29 Cv w/ Spg Rtn 24 -240V On/Off

Product Description

The Belimo B339+AFRBUP is a 3-way valve actuator designed for HVAC applications. It operates at a voltage range of twenty-four to two hundred forty volts and has a control type of On/Off. This model is suitable for heating or cooling coils in air handling units, fan coil units, and VAV box reheat coils.

• Voltage: 24 to 240 volts
• Flow Coefficient (Cv): 29
• Fluid compatibility: Chilled or hot water with up to 60% glycol

Product Highlights

The actuator is spring return and features an IP54 NEMA2 enclosure for protection against dust and water. The actuator also supports manual override and has a running time of less than twenty seconds for fail-safe operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B339+AFRBUP

Technical Specifications

• Trim: Stainless Steel
• Valve Size: 1.5 inches
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Pressure Independent: No
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Power Consumption (Running): 7 watts
• Power Consumption (Holding): 3.5 watts
