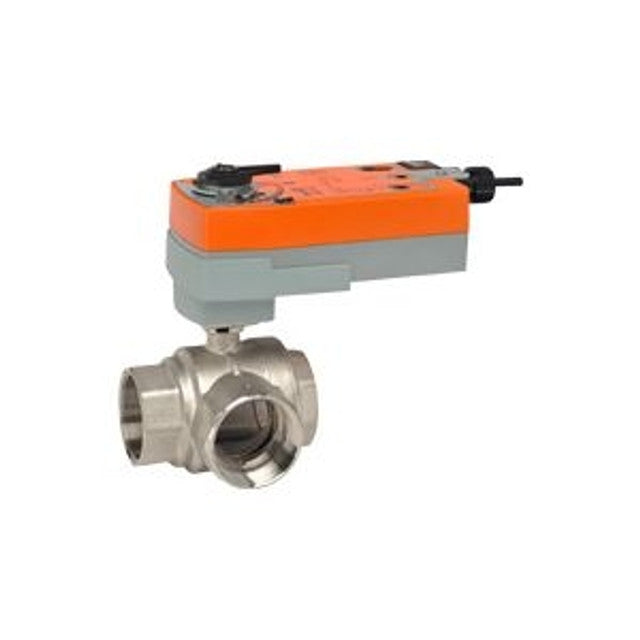

Belimo B339+AFRB24-S CCV 1.5 3 Way 29 Cv w/ Spg Rtn 24V On/Off SW

Product Description

The Belimo B339+AFRB24-S is a reliable valve actuator designed for air handling systems and fan coil units. This actuator supports efficient control of chilled or hot water systems with a maximum flow capability of twenty-nine Cv. It operates on twenty-four volts AC or DC and features a spring return mechanism.

• Robust design suitable for hydronic applications.
• Easy installation with standard internal thread end fitting.
• Manual override available for emergency operations.

Product Highlights

This actuator excels in use cases such as VAV box re-heat coils and unit ventilators, ensuring effective temperature regulation.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B339+AFRB24-S

Technical Specifications

• Valve Size: 1.5 [40]
• Flow Range: 29 Cv
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Electrical Connection: Cable
• Fluid: Chilled or hot water up to 60% glycol
