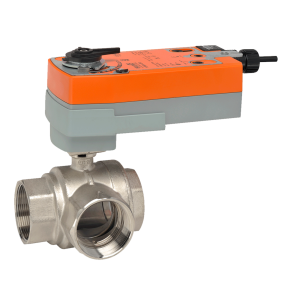

Belimo B338+AFRX24-MFT-S CCV Assembly 3 Way 1-1/2 in NPT 19 Cv

Product Description

The Belimo B338+AFRX24-MFT-S is a characteristically designed control valve for HVAC applications. This valve features a robust forged brass body with a nickel-plated surface, suitable for use in heating and cooling systems. The direct coupled actuator operates on 24 VAC and provides a modulating function with a spring return feature. It is ideal for use in air handling units and fan coil units.

• Suitable for hydronic systems with variable or constant flow.
• Self-cleaning ball valve design minimizes leakage.
• High temperature rating for water up to 250 degrees Fahrenheit.

Product Highlights

This valve is essential for managing the flow of chilled or hot water, making it versatile for various HVAC setups. The MFT functionality allows for enhanced control capabilities.

Product Information

Standard Information

• Brand: Belimo
• MPN: B338+AFRX24-MFT-S

Technical Specifications

• Flow Coefficient (Cv): 19
• Valve Size: 1.5 inches
• Angle of Rotation: 90 degrees
• Power Consumption: 7.5 W running, 3 W holding
• Electrical Connection: Two 3 ft. 18 GA appliance cables with 1/2 inch conduit connectors
• Operating Conditions: -22 F to 122 F
• Close-Off Pressure: 200 psi
• Degree of Protection: IP54, NEMA 2
